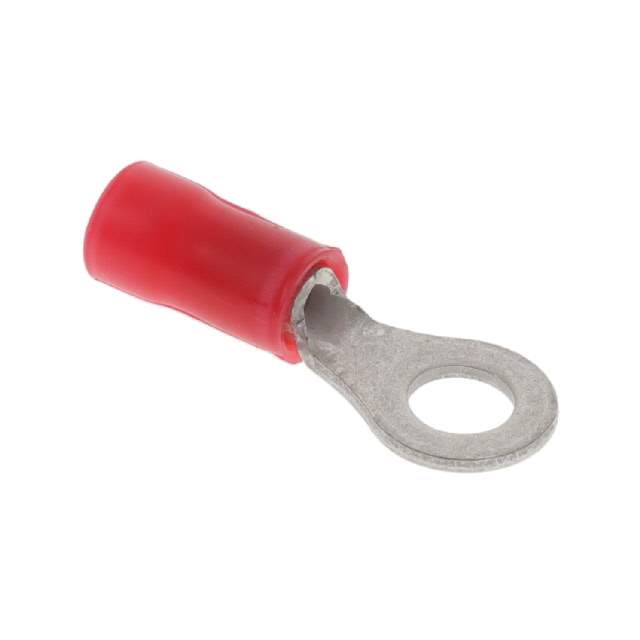

Same model may have multiple batches, images only for reference.

2-342103-1

Name: 2-342103-1
Brand: TE Connectivity
SKU: 1011504
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2-342103-1
Manufacturer	TE Connectivity
Catalog	Terminals
Description	CONN RING CIRC 16-22AWG #8 CRIMP / Ring Terminal Connector 8 Stud Circular 16-22 AWG Crimp
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Ring Connectors
Mfr	TE Connectivity AMP Connectors
Series	Plasti-Grip
Package	Tape & Reel (TR),Cut Tape (CT)
Terminal Type	Circular
Stud/Tab Size	8 Stud
Thickness	0.031" (0.79mm)
Width - Outer Edges	0.311" (7.90mm)
Length - Overall	0.861" (21.87mm)
Mounting Type	Free Hanging (In-Line)
Termination	Crimp
Wire Gauge	16-22 AWG
Insulation	Insulated
Features	Serrated Termination
Color	Red
Contact Material	Copper
Contact Finish	Tin
Insulation Diameter	0.106" ~ 0.142" (2.69mm ~ 3.61mm)
Material - Insulation	Poly-Vinyl Chloride (PVC)
Base Product Number	342103
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	A135578DKR,A135578DKRINACTIVE,2-342103-1-ND,A135578CT,A135578DKR-ND,A135578TR
Standard Package	5,000
Win Source Part Number	1011504-2-342103-1
Ultra Librarian 3D Model	Ultra Librarian 2-342103-1 CAD Model

Description

The 1011504-2-342103-1 is a circular ring connector from TE Connectivity AMP Connectors.

Series: Plasti-Grip
Color: Red
Termination: Serrated
Installation: Crimped
Contact Finish: Tin
Material: Copper
Insulation Material: Poly-vinyl chloride (PVC)
Package: Tape & reel (TR) and cut tape (CT)
Wire Gauge: 16-22 AWG
Standard Package: 5,000
Supply and Demand Status: Sufficient
