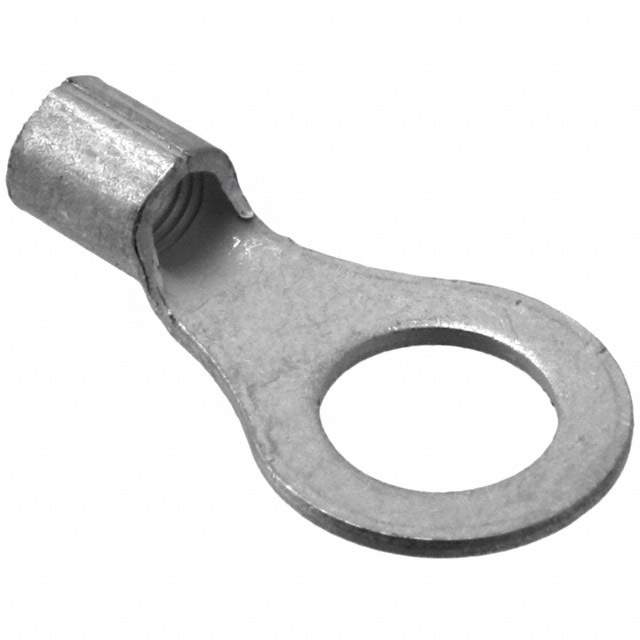

2-33459-6 Real Image
Same model may have multiple batches, images only for reference.

2-33459-6

Part No 2-33459-6
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 10-12AWG #5/16 / Ring Terminal Connector 5/16 Stud Circular 10-12 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Circular
Stud/Tab Size 5/16 Stud
Thickness 0.039" (0.99mm)
Width - Outer Edges 0.531" (13.49mm)
Length - Overall 1.004" (25.50mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Non-Insulated
Features Brazed Seam, Serrated Termination
Contact Material Copper
Contact Finish Tin
Base Product Number 33459
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27048-ND,A27048CT,2-33459-6-ND,2334596,A27048TR,A27048
Standard Package 2,500
Win Source Part Number 1333660-2-33459-6
Ultra Librarian 3D Model Ultra Librarian 2-33459-6 CAD Model

Description

TE Connectivity AMP Connectors 1333660-2-33459-6 is a circular terminal connector that features brazed seam and serrated termination.

  • Termination Style: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 10-12 AWG
  • Contact Material: Copper
  • Insulation: Non-Insulated
  • Stud/Tab Size: 5/16 Stud
  • Thickness: 0.039" (0.99mm)
  • Width: 0.531" (13.49mm)
  • Length: 1.004" (25.50mm)
  • Mounting: Free Hanging (In-Line)
