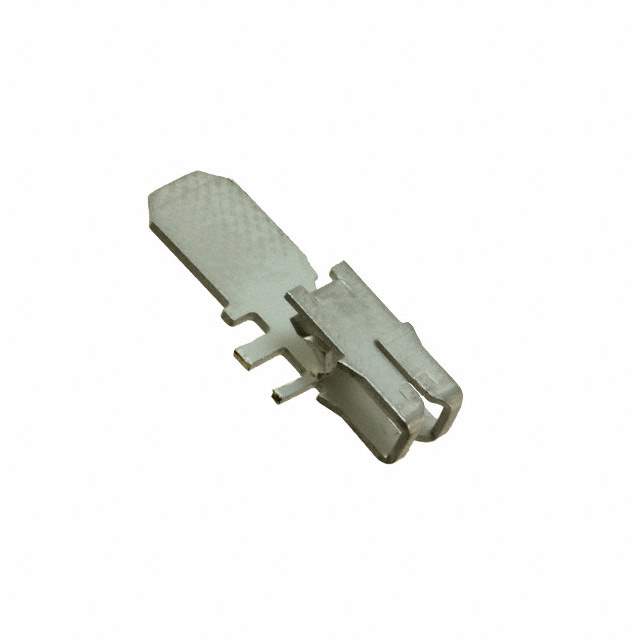

The 2-316300-7 is a FASTON terminal from TE Connectivity. FASTON terminals are known for their quick disconnect capabilities, making them ideal for applications requiring easy and reliable connections. These terminals provide a secure and durable connection for various wire sizes.

Applications

• Automotive wiring harnesses
• Home appliances (e.g., refrigerators, washing machines)
• Industrial control panels
• Power supplies
• HVAC systems

Features

• Quick disconnect design for easy installation and maintenance
• Durable construction for long-term reliability
• Secure locking mechanism to prevent accidental disconnections
• Available in various sizes to accommodate different wire gauges
• Tin or other plating options for corrosion resistance and improved conductivity

Benefits

• Simplifies wiring and assembly processes
• Reduces downtime due to easy maintenance and replacements
• Ensures reliable electrical connections, minimizing the risk of failures
• Provides a cost-effective solution for wire termination
• Offers a safe and secure connection for various applications

Additional Details

The 2-316300-7 FASTON terminal is typically made from brass or phosphor bronze with a tin plating. It is designed to be crimped onto a wire, creating a secure mechanical and electrical connection. The housing is designed to provide insulation and protection for the connection. The specific dimensions, wire gauge compatibility, and plating details can be found in the TE Connectivity product datasheet.
