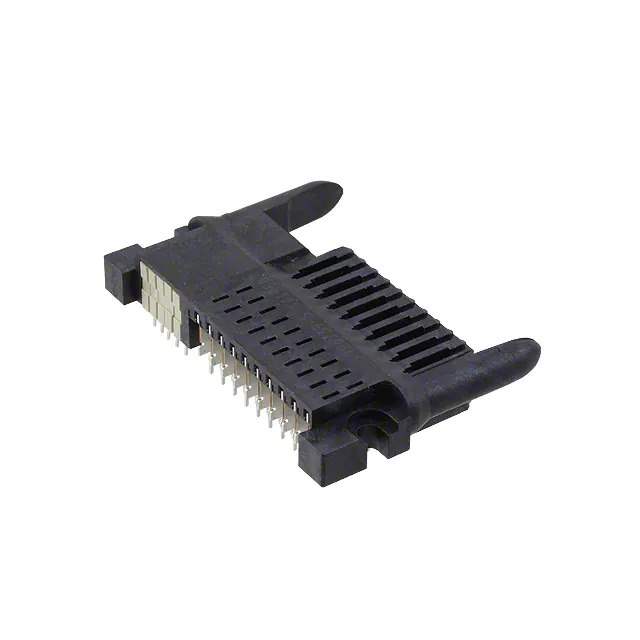

2-1926739-5 Real Image
Same model may have multiple batches, images only for reference.

2-1926739-5

Part No 2-1926739-5
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RCPT 35POS EDGE MNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr TE Connectivity
Series MINIPAK HDL
Package Tray
Product Status Active
Connector Type Receptacle, Female Sockets and Blade Sockets
Number of Positions 35
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 25 Signal, 10 Power
Features Guide Pin
Contact Finish Gold or Gold-Palladium
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Material Flammability Rating UL94 V-0
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 1926739
Standard Package 24 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 847729-2-1926739-5
Ultra Librarian 3D Model Ultra Librarian 2-1926739-5 CAD Model

Description

The 847729-2-1926739-5 TE Connectivity electronic component is a specialized backplane connector.

  • Series: MINIPAK HDL
  • Positions: 35
  • Pitch: 0.079" (2.00mm)
  • Color: Black
  • Connector Type: Receptacle
  • Socket Type: Female Sockets, Blade Sockets
  • Contact Finish: Gold or Gold-Palladium
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package Quantity: 24 Pieces
  • Package Type: Tray
  • Mounting Style: Board Edge, Through Hole, Right Angle
  • Operating Temperature: -40°C to 125°C
  • REACH: Not Affected
  • HTSUS Code: 8536.69.4040
  • Manufacturer: TE Connectivity
  • Base Product Number: 1926739
  • Product Status: Active
