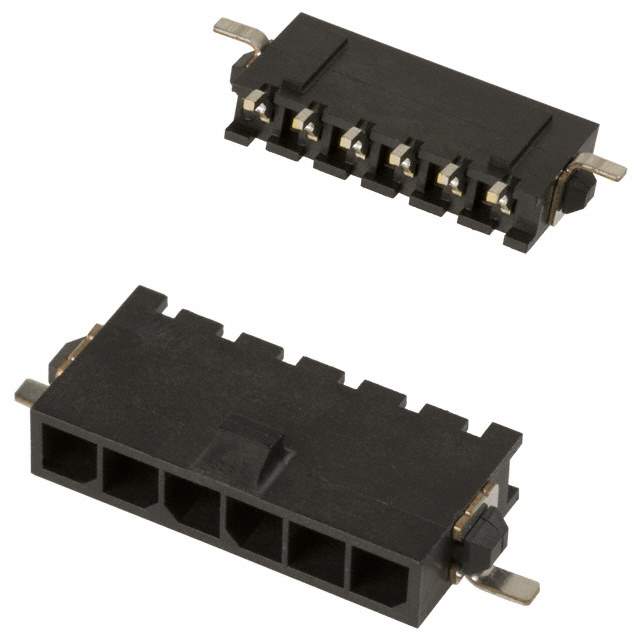

2-1445100-6 Real Image
Same model may have multiple batches, images only for reference.

2-1445100-6

Part No 2-1445100-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 6POS 3MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.152" (3.85mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0μin (0.76μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100.0μin (2.54μm)
Applications General Purpose
Manufacturer Pack Quantity 215
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808270-2-1445100-6
Ultra Librarian 3D Model Ultra Librarian 2-1445100-6 CAD Model

Description

The TE Connectivity AMP Connectors 808270-2-1445100-6 is a medium-popularity electronic component.

  • Supply & Demand: Balanced
  • Component Type: Header
  • Pin Contacts: 6 Male
  • Mounting Style: Surface Mount, Right Angle
  • Features: Solder Retention, Locking Ramp
  • Contact Material: Brass
  • Contact Finish (Mating): Gold (30.0μin (0.76μm))
  • Contact Finish (Post): Tin (100.0μin (2.54μm))
  • Voltage Rating: 250V
  • Material Flammability Rating: UL94 V-0
  • Application: General Purpose
  • Pitch-Mating: 0.118" (3.00mm)
  • Insulation Color: Black
  • Shrouding: 4 Walls
  • Insulation Height: 0.152" (3.85mm)
  • Contact Shape: Square
  • Operating Temperature: -40°C ~ 105°C
  • Win Source Part Number: 808270-2-1445100-6
