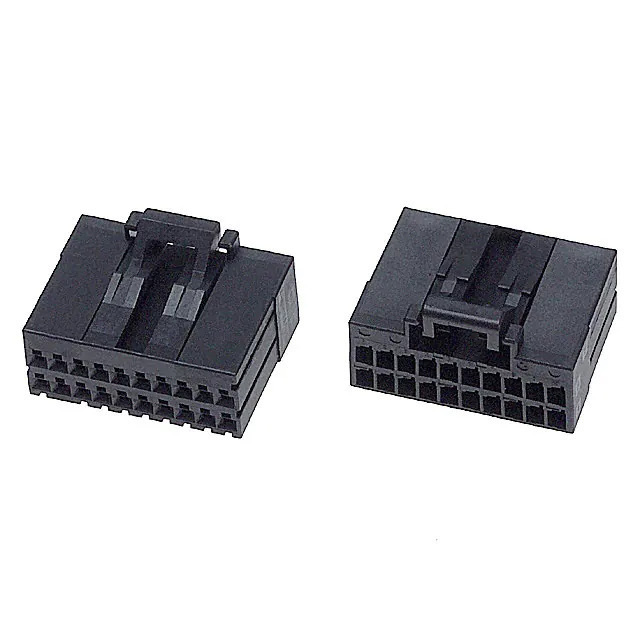

Same model may have multiple batches, images only for reference.

2-1318118-9

Name: 2-1318118-9
Brand: TE Connectivity
SKU: 1365449
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	2-1318118-9
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 20POS 2.50MM / 20 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	TE Connectivity AMP Connectors
Series	Dynamic D-2100
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	20
Pitch	0.098" (2.50mm)
Number of Rows	2
Row Spacing	0.148" (3.75mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Black
Features	Polarizing Key
Temperature Range - Operating	-55°C ~ 105°C
Note	Contacts Not Included
Base Product Number	1318118
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1365449-2-1318118-9
Ultra Librarian 3D Model	Ultra Librarian 2-1318118-9 CAD Model

Alternative Products

Description

The 1365449-2-1318118-9 is a rectangular connector housing from TE Connectivity AMP Connectors.

Category: Connectors and Interconnects
Segment: Rectangular Connector Housings
Series: Dynamic D-2100
Feature: Polarizing Key
Connector Type: Receptacle
Contact Gender: Female Socket
Positions: 20
Rows: 2
Pitch: 0.098 inches (2.50mm)
Row Spacing: 0.148 inches (3.75mm)
Mounting: Free-Hanging (In-Line)
Fastening Type: Latch Lock
Color: Black
Status: Active
HTSUS: 8538.90.6000
ECCN: EAR99
REACH: Unaffected
Packaging: Bulk
Contacts: Not Included
