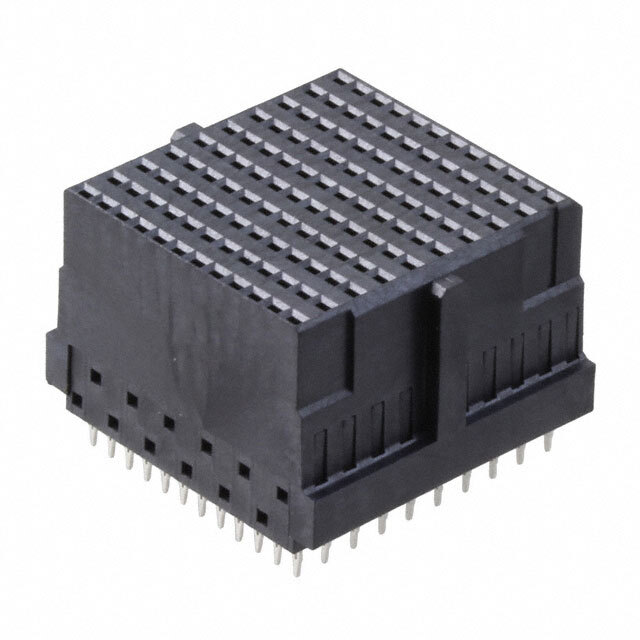

1934224-1 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

1934224-1

Part No 1934224-1
Manufacturer TE Connectivity
Catalog Specialized
Description CONN RCPT HD 80POS EDGE MNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Usage Coplanar, Daughtercard
Connector Type Receptacle, Female Sockets
Connector Style High Speed
Number of Positions 80
Number of Positions Loaded All
Pitch 0.075" (1.90mm)
Number of Rows 12
Number of Columns 10
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1612597-1934224-1
Ultra Librarian 3D Model Ultra Librarian 1934224-1 CAD Model

Description
