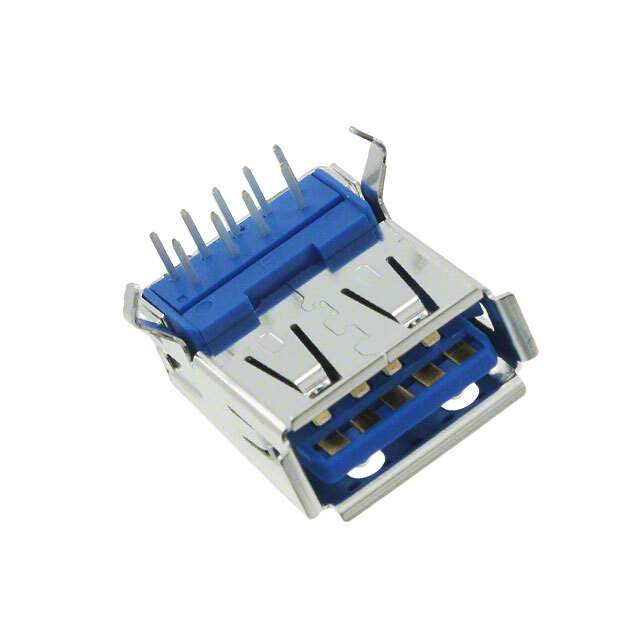

1932258-1 Real Image
Same model may have multiple batches, images only for reference.

1932258-1

Part No 1932258-1
Manufacturer TE Connectivity
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB3.0 TYPEA 9POS R/A / USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr TE Connectivity AMP Connectors
Package Tray
Connector Type USB-A (USB TYPE-A)
Number of Contacts 9
Gender Receptacle
Specifications USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Mounting Type Through Hole, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Number of Ports 1
Current Rating (Amps) 0.25A, 1.8A
Voltage - Rated 100VAC/DC
Mating Cycles 5000
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Blue
Base Product Number 1932258
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names -1932258-1-CSI,A101494,-1932258-1-SI,2266-1932258-1
Standard Package 144
Win Source Part Number 1197819-1932258-1
Ultra Librarian 3D Model Ultra Librarian 1932258-1 CAD Model

Description

The TE Connectivity AMP Connectors 1932258-1 is a USB-A (USB TYPE-A) receptacle connector with a solder termination and a board lock feature.

  • Termination: Solder
  • Board Lock: Yes
  • Contact Finish: Gold
  • Current Rating: 0.25A and 1.8A
  • Insulation Color: Blue
  • Shielding Material: Copper alloy
  • Mounting Feature: Horizontal
  • Mounting Type: Through hole, right angle
  • USB Standard: USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
  • Voltage Rating: 100VAC/DC
  • ECCN: EAR99
