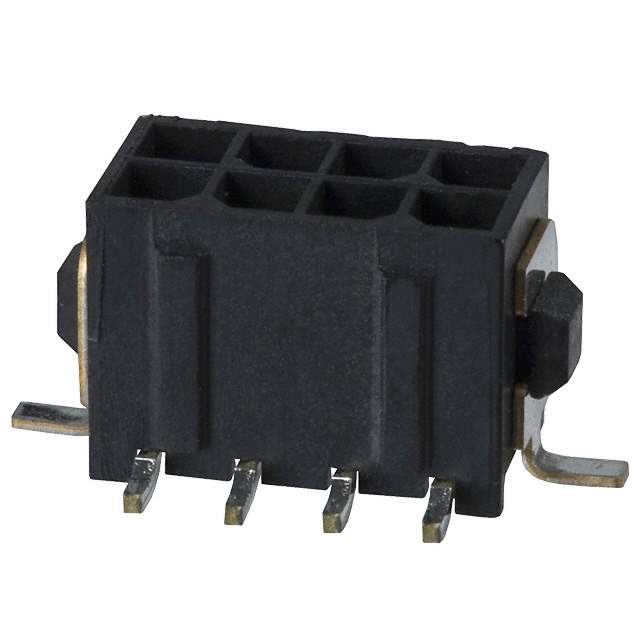

794637-8 Real Image
Same model may have multiple batches, images only for reference.

794637-8

Part No 794637-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 8POS DL 15GOLD SMD
Datasheet
794637-8 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 8
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.364" (9.25mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin-Lead
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -40°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100μin (2.54μm)
Applications General Purpose
Win Source Part Number 1010164-794637-8
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 794637-8 CAD Model

Description

The TE Connectivity AMP Connectors 1010164-794637-8 is a shrouded locking ramp header connector with a male pin contact type.

  • Manufacturer: TE Connectivity AMP Connectors
  • Type: Shrouded Locking Ramp Header Connector
  • Contact Type: Male Pin
  • Positions Loaded: 8
  • Application: General Purpose
  • Voltage Rating: 250V
  • Current Rating: Varies by wire gauge
  • Flammability Rating: UL94 V-0
  • Mounting Style: SMD (SMT)
  • Pitch-Mating: 0.118" (3.00mm)
  • Row Spacing-Mating: 0.118" (3.00mm)
  • Temperature Range: -40°C to 105°C
  • Insulation Color: Black
  • Availability: Open market
  • Supply and Demand Status: Balanced
