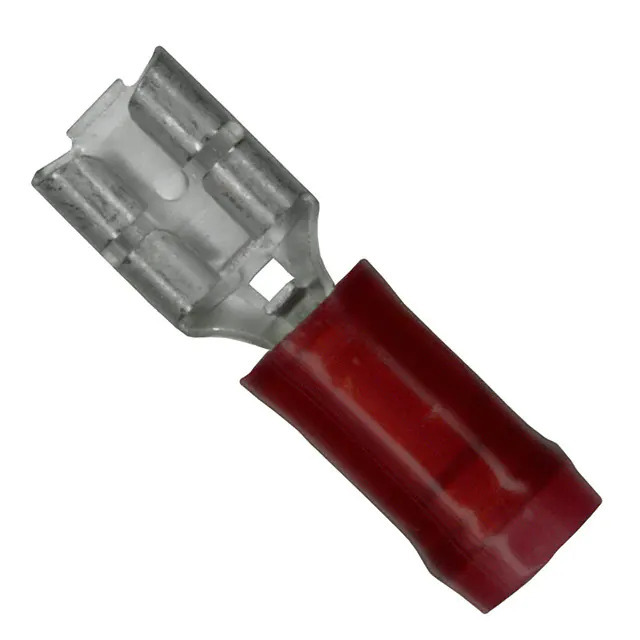

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston, PIDG
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.800" (20.32mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Mating End Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.135" (3.43mm)
Base Product Number 184268
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364852-184268-2
Ultra Librarian 3D Model Ultra Librarian 184268-2 CAD Model

Description

The 1364852-184268-2 is a quick connect terminal from TE Connectivity AMP Connectors.

  • Series: Faston, PIDG
  • Mounting: Free hanging (in-line)
  • Wire Gauge: 18-22 AWG
  • Length: 0.800" (20.32mm)
  • Color: Red
  • Insulation: Insulated (non-mating end)
  • Tab Width: 0.187" (4.75mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.250" (6.35mm)
  • Contact Material: Brass
  • Contact Finish: Tin
  • Product Status: Active
  • Packaging: Tape & reel (TR)
  • Manufacturer: TE Connectivity AMP Connectors
