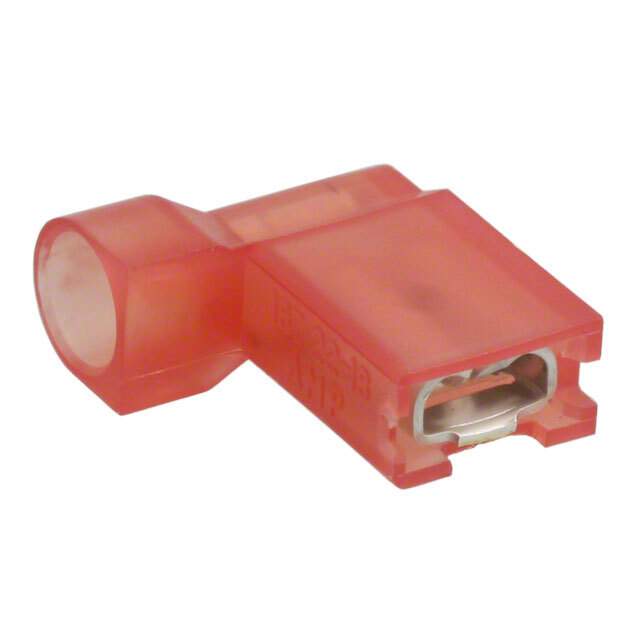

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line), Right Angle
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.165" (4.19mm)
Base Product Number 520334
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27832,A27832-ND,A27833CT,A27833TR,2-520334-2-ND,25203342,-2-520334-2-CSI,-2-520334-2-SI
Standard Package 2,200
Win Source Part Number 1333756-2-520334-2
Ultra Librarian 3D Model Ultra Librarian 2-520334-2 CAD Model

Description

TE Connectivity AMP Connectors' 2-520334-2 is a female quick disconnect connector designed for wire gauge 18-22 AWG.

  • Tab Width: 0.187" (4.75mm)
  • Insulation: Fully Insulated
  • Color: Red
  • Mounting: Right-Angle
  • Terminal Type: Angled - 90°, Flag
  • Contact Finish: Tin
  • Contact Material: Brass
  • Package: Reel
  • Quantity: 2,200 units
  • RoHS Compliant: Yes
  • ECCN: EAR99
