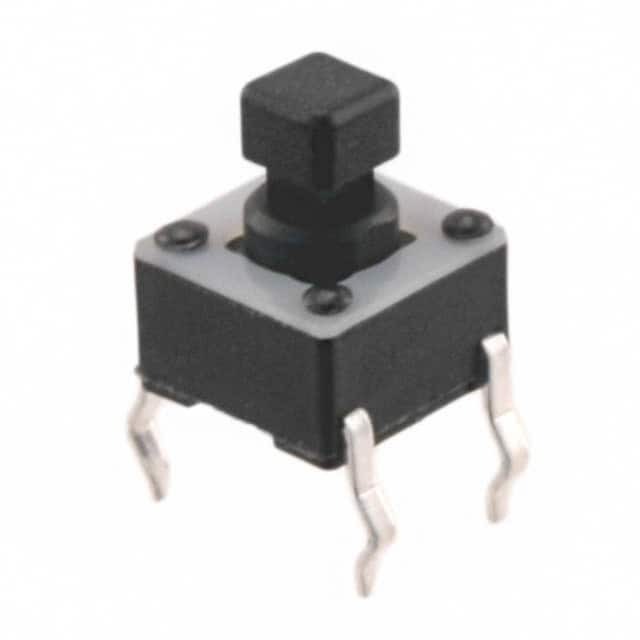

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr TE Connectivity
Series FSMCD
Package Bulk
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Plunger for Cap
Mounting Type Through Hole
Actuator Height off PCB, Vertical 7.50mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -35°C ~ 85°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number 1825967
Standard Package 750 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 905613-1825967-2
Ultra Librarian 3D Model Ultra Librarian 1825967-2 CAD Model

Description

The 905613-1825967-2 is a tactile switch from TE Connectivity.

  • Manufacturer: TE Connectivity
  • Series: FSMCD series
  • Termination Style: PC pin
  • Circuit Configuration: SPST-NO (normally open)
  • Switch Function: Off-Mom (momentary)
  • Actuator Material: Polyamide (PA66) and nylon 6/6
  • Outline: 6.00mm x 6.00mm
  • Actuator Orientation: Top actuated
  • Operating Force: 160gf
  • Mechanical Life: 100,000 cycles
  • Mounting: Through-hole
  • Operating Temperature Range: -35°C to 85°C
  • Status: Active
