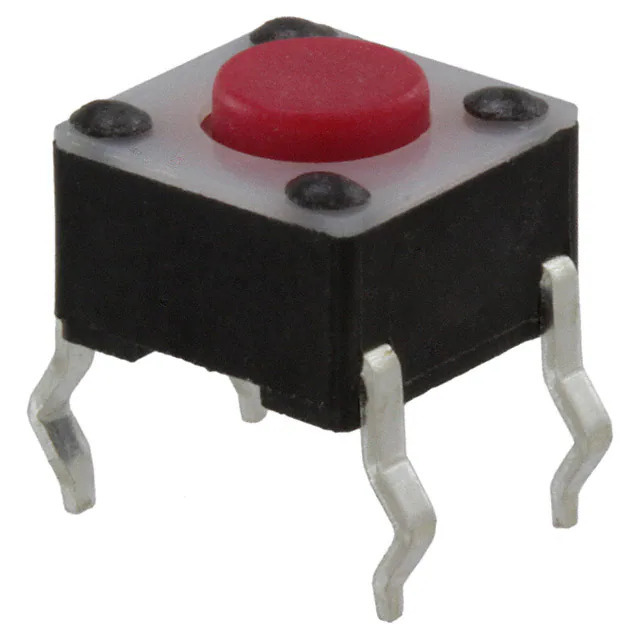

Same model may have multiple batches, images only for reference.

1825910-3

Name: 1825910-3
Brand: TE Connectivity
SKU: 1376481
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1825910-3
Manufacturer	TE Connectivity
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	TE Connectivity ALCOSWITCH Switches
Series	FSMJ
Package	Bag
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 24VDC
Actuator Type	Standard
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	4.30mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	6.00mm x 6.00mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	260gf
Ingress Protection	-
Features	-
Temperature Range - Operating	-35°C ~ 85°C
Actuator Material	Polybutylene Terephthalate (PBT)
Switch Travel	0.25mm
Mechanical Life	100,000 Cycles
Base Product Number	1825910
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1376481-1825910-3
Ultra Librarian 3D Model	Ultra Librarian 1825910-3 CAD Model

Description

The 1376481-1825910-3 is a tactile switch from TE Connectivity ALCOSWITCH Switches.

Switch Function: Off-Mom
Pole Throw: SPST-NO
Mounting Type: Through Hole
Actuator Height off PCB: 4.30mm
Operating Temperature: -35°C to 85°C
Mechanical Life: 100,000 Cycles
Outline: 6.00mm x 6.00mm
Illumination: Non-Illuminated
Operating Force: 260gf
Material: Polybutylene Terephthalate (PBT)
Contact Rating: 0.05A @ 24VDC
REACH: Compliant
ECCN: EAR99
