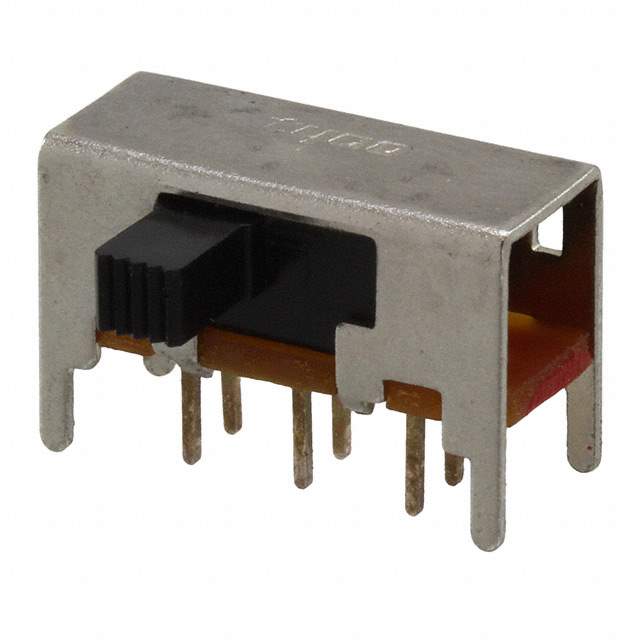

1825290-1 Real Image
Same model may have multiple batches, images only for reference.

1825290-1

Part No 1825290-1
Manufacturer TE Connectivity
Catalog Slide Switches
Description SWITCH SLIDE DPDT 300MA 125V / Slide Switch DPDT Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series MHS
Package Bulk
Circuit DPDT
Contact Timing Shorting (MBB)
Switch Function On-On
Current Rating (Amps) 300mA (AC)
Voltage Rating - AC 125 V
Actuator Type Standard
Actuator Length 4.50mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -20°C ~ 85°C
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 4.00mm
Mechanical Life 15,000 Cycles
Electrical Life 15,000 Cycles
Operating Force 600gf
Base Product Number 1825290
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9050
Other Names MHS222RA04,MHS222R04,-MHS222R04-SI,-MHS222R04-SI-ND,-1825290-1-SI,MHS222RA04-ND,450-1959
Standard Package 2,250
Win Source Part Number 1063477-1825290-1
Ultra Librarian 3D Model Ultra Librarian 1825290-1 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches MHS series slide switch is a DPDT circuit switch with a shorting (MBB) contact timing.

  • Switch Function: On-On
  • Actuator Type: Standard
  • Actuator Length: 4.50mm
  • Actuator Material: Polyoxymethylene (Acetal) (POM)
  • Switch Travel: 4.00mm
  • Operating Force: 600gf
  • Mechanical Life: 15,000 cycles
  • Electrical Life: 15,000 cycles
  • Voltage Rating: 125 V AC
  • Current Rating: 300mA (AC)
  • Temperature Range: -20°C to 85°C
  • Package: 2,250 pieces per package
  • ECCN: EAR99
  • HTSUS: 8536.50.9050
  • Other part numbers: 1825261-1, 1825263-1, 1571630-2, OS202013MT8QN1, OS202011MS2QN1, and MHS222R04
