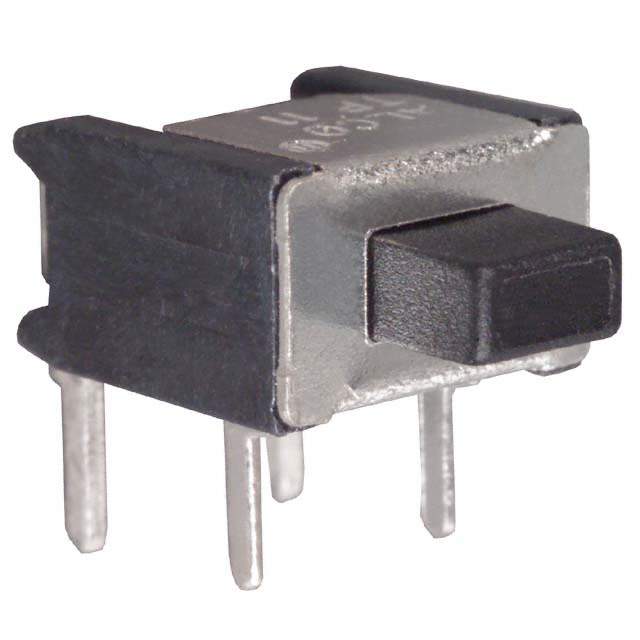

1825095-3 Real Image1
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series TP
Package Bulk
Mounting Type Through Hole, Right Angle
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Rectangular, Plunger
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style PC Pin
Temperature Range - Operating -30°C ~ 65°C
Electrical Life 100,000 Cycles
Base Product Number 1825095
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names 2266-1825095-3,450-1369,-TP11CGRA004-SI,-TP11CGRA004-SI-ND,TP11CGRA004,-1825095-3-SI
Standard Package 25
Win Source Part Number 1025632-1825095-3
Ultra Librarian 3D Model Ultra Librarian 1825095-3 CAD Model

Description

The TP11CGRA004 is a standard type pushbutton switch that is manufactured by TE Connectivity ALCOSWITCH Switches.

  • Mounting Type: Through hole, right angle
  • Circuit: SPST-NO
  • Voltage Rating: 20V AC and 20V DC
  • Current Rating: 0.4VA (AC/DC)
  • Actuator Type: Rectangular, plunger
  • Mechanical Life: 100,000 cycles
  • Electrical Life: 100,000 cycles
  • Temperature Range: -30°C to 65°C
