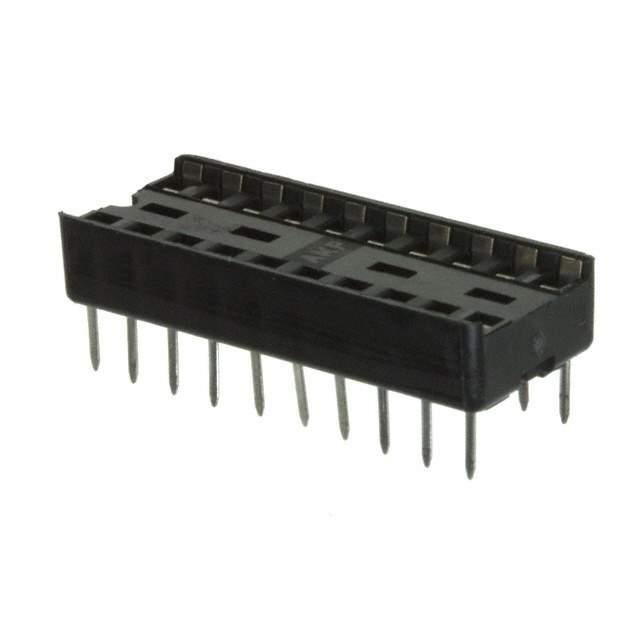

1825093-6 Real Image
Same model may have multiple batches, images only for reference.

1825093-6

Part No 1825093-6
Manufacturer TE Connectivity
Catalog Sockets for ICs, Transistors
Description CONN IC DIP SOCKET 20POS GOLD
Datasheet
1825093-6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 20 (2 x 10) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
Manufacturer TE Connectivity
Series Diplomate DL
Package Tube
Part Status Obsolete
Operating Temperature Range -55°C ~ 125°C
Mounting Through Hole
Family Name 1825093
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 18250936, A32872
Quantity per package 2100
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905605-1825093-6
Ultra Librarian 3D Model Ultra Librarian 1825093-6 CAD Model

Description

TE Connectivity presents an obsolete Diplomate DL connector with a part number of 905605-1825093-6.

  • Manufacturer: TE Connectivity
  • Status: Obsolete
  • Type: Diplomate DL connector
  • Positions: 20 (2 x 10)
  • Type: Pos DIP
  • Row Spacing: 0.3 inches (7.62mm)
  • Socket: Gold
  • Mounting: Through-hole
  • Operating Temperature: -55°C to 125°C
  • Package: Tube
  • Family Name: 1825093
  • Application: Connectors applications
  • Popularity: High popularity
  • Supply and Demand: Balance
  • Quantity per Package: 2100 units
