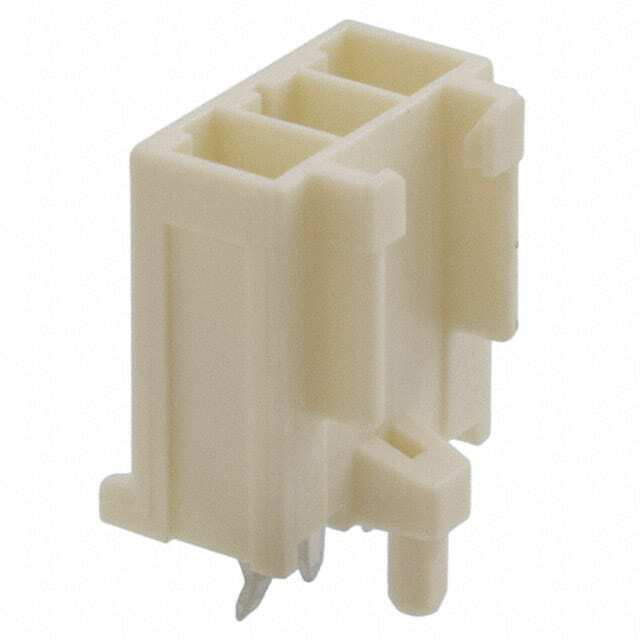

179839-1
Same model may have multiple batches, images only for reference.

179839-1

Part No 179839-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 3.96MM / Connector Header Through Hole 3 position 0.156" (3.96mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Power Double Lock
Package Tray
Product Status Active
Connector Type Header
Contact Type Tab
Pitch - Mating 0.156" (3.96mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.575" (14.60mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Guide
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Applications General Purpose
Base Product Number 179839
Standard Package 340 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849949-179839-1
Ultra Librarian 3D Model Ultra Librarian 179839-1 CAD Model

Description

The Power Double Lock Header with Male Pins is a high-quality connector designed for use in various electronic applications. With a compact design and a 3-position configuration, this connector is perfect for connecting different components on a circuit board.

  • Positions: 3
  • Board Guide: Yes
  • Contact Type: Tab
  • Loaded: All Positions
  • Rows: Single
  • Termination: Kinked Pins
  • Fastening Type: Locking Ramp
  • Contact Material: Copper Alloy
  • Flammability Rating: UL94 V-0
  • Temperature Range: -30°C to 105°C
  • Mounting Type: Through-Hole
  • Design: Shrouded 4-Wall
  • Contact Length: 0.150" (3.81mm)
  • Insulation Height: 0.575" (14.60mm)
