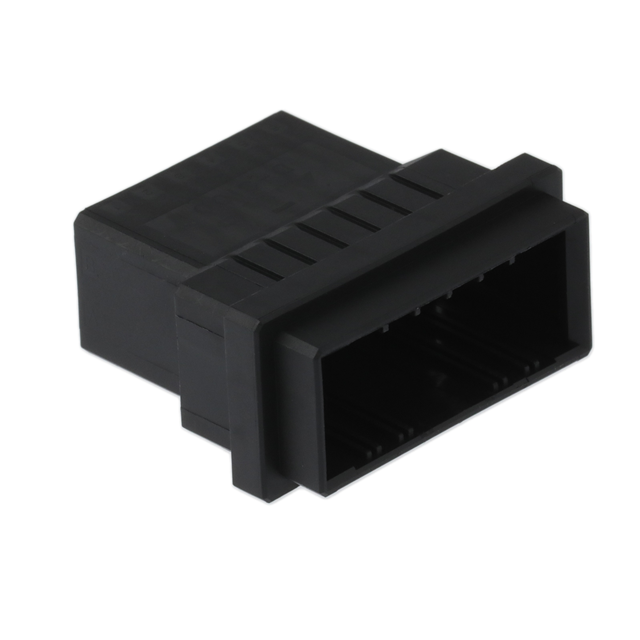

178964-6 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number 300000847-178964-6
Manufacturer TE Connectivity
Category Connectors, Interconnects -Rectangular Connectors -Rectangular Connector Housings
Series Dynamic D-3100
Package Bulk
Product Status Active
Connector Type Plug
Contact Type Tab
Number of Positions 12
Pitch 0.150" (3.81mm)
Number of Rows 2
Ultra Librarian 3D Model Ultra Librarian 178964-6 CAD Model

Description

TE Connectivity Dynamic D-3100 series rectangular connector housing is a plug type connector with 12 positions and 2 rows. The connector has a pitch of 0.150 inches (3.81mm) and contact type is tab. It is available in bulk packaging and is an active product. This connector is suitable for use in various electronic applications where a reliable and secure connection is required.
