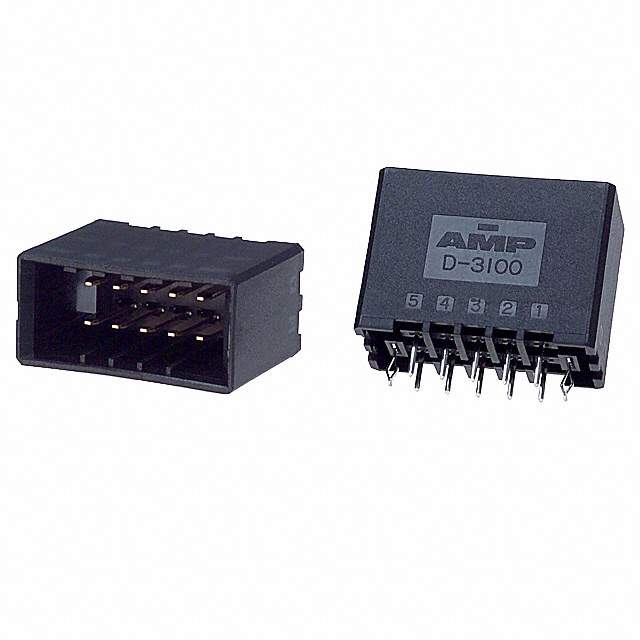

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3100
Package Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.150" (3.81mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.200" (5.08mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.850" (21.59mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 250V
Applications General Purpose, Industrial
Base Product Number 178325
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -178325-2-CSI,2266-178325-2,1783252,A29515,-178325-2-SI,A29515-NDR
Standard Package 17
Win Source Part Number 1018333-178325-2
Ultra Librarian 3D Model Ultra Librarian 178325-2 CAD Model

Description

This electronic component is a rectangular connector designed for board to board or cable connections.

  • Series: Dynamic D-3100
  • Pitch-Mating: 0.150" (3.81mm)
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness-Mating: 15.0µin (0.38µm)
  • Package: Bulk
  • Mounting: Through Hole
  • Alternative Parts: -178325-2-CSI, 2266-178325-2, 1783252, A29515, -178325-2-SI, and A29515-NDR
  • Manufacturer: TE Connectivity AMP Connectors
