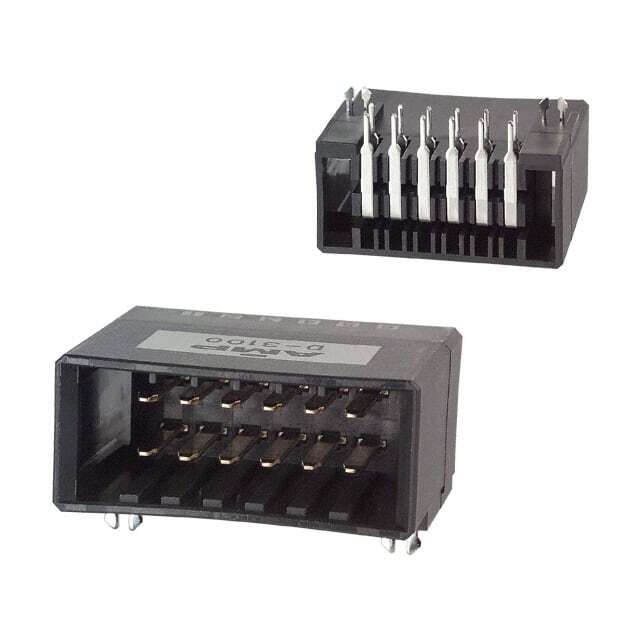

Part No 178306-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 3.81MM / Connector Header Through Hole, Right Angle 12 position 0.150" (3.81mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Dynamic D-3100
Package Bulk
Product Status Active
Connector Type Header
Contact Type Tab
Pitch - Mating 0.150" (3.81mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.200" (5.08mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.568" (14.43mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 250V
Applications General Purpose, Industrial
Base Product Number 178306
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854178-178306-2
Ultra Librarian 3D Model Ultra Librarian 178306-2 CAD Model

Description

The 854178-178306-2 is a male pin header connector manufactured by TE Connectivity.

  • Series: Dynamic D-3100
  • Category: Rectangular Connectors
  • Positions: 12
  • Features: Board Lock
  • Connector Type: Header
  • Contact Type: Tab
  • Positions Loaded: All
  • Rows: 2
  • Termination: Solder
  • Fastening: Detent Lock
  • Package: Bulk
  • Standard Package Size: 15 pieces
  • Contact Material: Copper Alloy
  • Contact Finish: Gold (Mating), Tin (Post)
  • Voltage Rating: 250V
  • Applications: General Purpose and Industrial
  • Insulation Material: Thermoplastic, Polyester, and Glass Filled
  • Mounting: Through-Hole, Right Angle
  • Design: Shrouded 4-Wall
  • ECCN: EAR99
  • MSL Level: 1
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4040
  • Base Product Number: 178306
  • Product Status: Active
