Products specifications

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series Power Double Lock
Package Bulk
Connector Type Plug
Contact Type Female Socket
Number of Positions 2
Pitch 0.156" (3.96mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Note Contacts Not Included
Base Product Number 177898
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names 2266-177898-1,A112792,1778981,-177898-1-SI,177898-1-ND,-177898-1-CSI
Standard Package 600
Win Source Part Number 1117426-177898-1
Ultra Librarian 3D Model Ultra Librarian 177898-1 CAD Model

Description

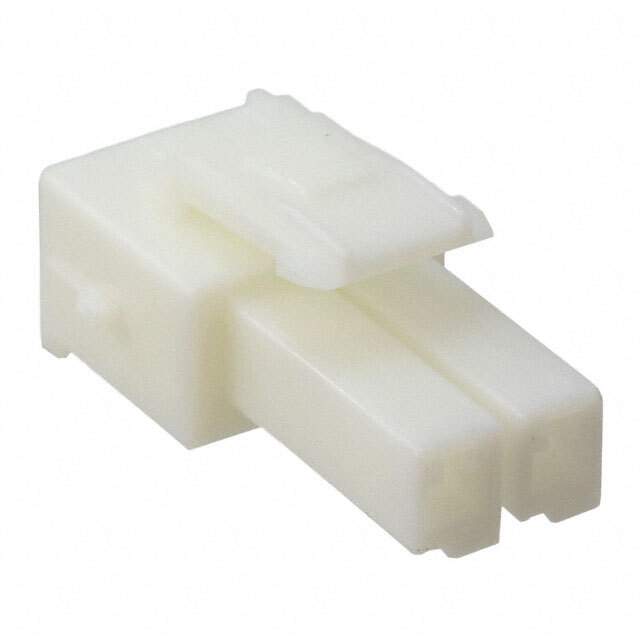

The 177898-1 is a rectangular connector housing used in connectors and interconnects. It is a part of the Power Double Lock series and has two positions with a pitch of 0.156" (3.96mm). The color of the device is natural and it is a plug type connector with female socket contact type. The device has one row and the fastening type is latch lock. The package is bulk and the contact termination is crimp. The contacts are not included, and the standard package is 600. The mounting type is free hanging (in-line) and the alternative parts (cross-reference) for this device is 177898-1.. The MSL level is 1 (Unlimited) and the HTSUS is 8538.90.6000. The manufacturer of this device is TE Connectivity AMP Connectors.
