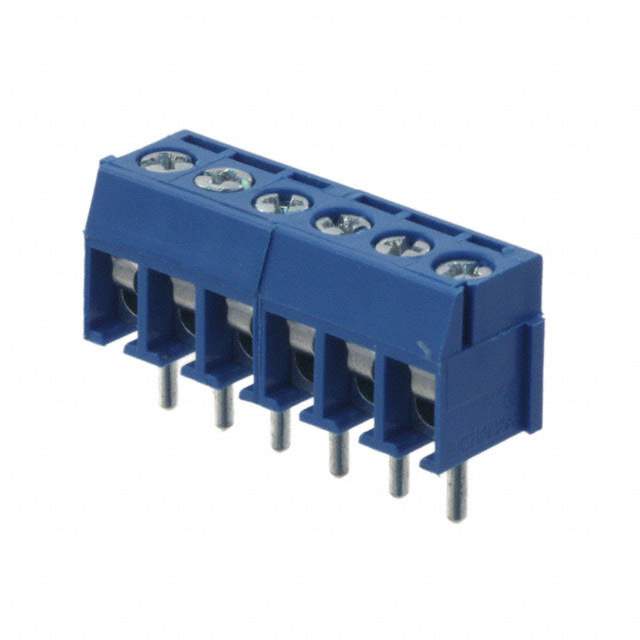

The 1121488-1776275-6 is a connector that is manufactured by TE Connectivity AMP Connectors.

• Mounting Style: Through-hole
• Features: Interlocking features on the side
• Color: Blue
• Positions per Level: 6
• Number of Levels: 1
• Pitch: 0.138 inches (3.50mm)
• Wire Gauge: 18-26 AWG
• Voltage Rating: 250V
• Current Rating: 7A
• Dielectric Material: Polyamide (PA66), Nylon 6/6
• Wire Termination: Screw - leaf spring, wire guard
• Contact Material-Plating: Brass - copper tin plated
• Clamp Material-Plating: Steel, stainless
• Screw Material-Plating: Steel, galvanized - chromate plated
• Screw Torque: 0.28 Nm (2.5 Lb-In)
• Screw Thread: M2.6
• Categories: Connectors, interconnects
• Operating Temperature Range: -55°C to 105°C
• Manufacturer Homepage: www.macom.com
• Supply and Demand Status: Balance
• Manufacturer Pack Quantity: 500
• MSL Level: 1 (Unlimited)
