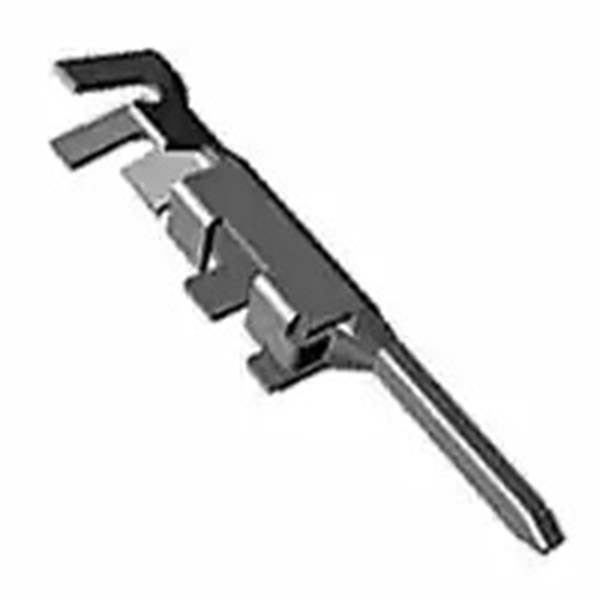

175286-5 TE Connectivity
Same model may have multiple batches, images only for reference.

175286-5

Part No 175286-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN PIN 16-20AWG CRIMP TIN / Pin Contact Tin 16-20 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3
Package Tape & Reel (TR)
Product Status Active
Type -
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 16-20 AWG
Contact Finish Tin
Contact Finish Thickness -
Base Product Number 175286
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362922-175286-5
Ultra Librarian 3D Model Ultra Librarian 175286-5 CAD Model

Description

The TE Connectivity AMP Connectors Dynamic D-3 series offers high-quality rectangular connector contacts for crimp termination.

  • Wire Gauge: 16-20 AWG
  • Contact Finish: Tin
  • Series: Dynamic D-3
  • Termination Type: Crimp
