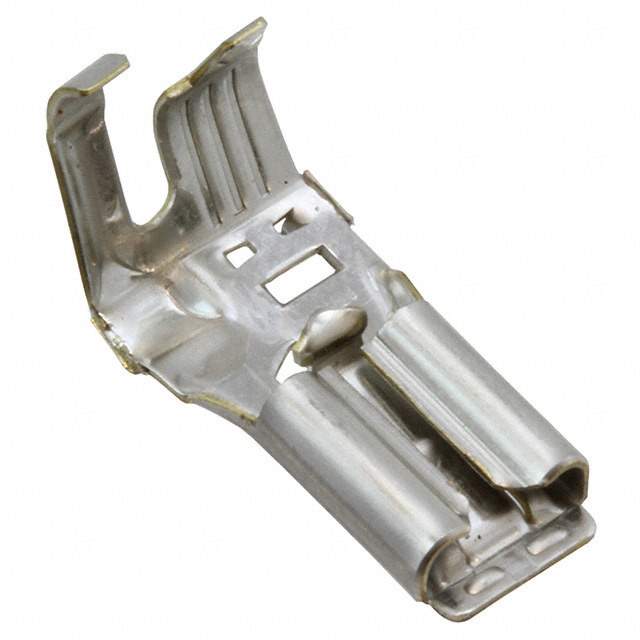

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.248" (6.30mm)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line), Right Angle
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.067" ~ 0.170" (1.70mm ~ 4.32mm)
Base Product Number 175193
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -175193-1-SI,-175193-1-CSI,A111076CT,A111076TR,175193-1-ND
Standard Package 4,000
Win Source Part Number 1333459-175193-1
Ultra Librarian 3D Model Ultra Librarian 175193-1 CAD Model

Description

The TE Connectivity AMP Connectors is a female quick connect/disconnect terminal connector with the Win Source Part Number 1333459-175193-1.

  • Termination: crimp
  • Contact Finish: tin
  • Wire Gauge: 16-22 AWG
  • Contact Material: brass
  • Tab Width: 0.187 inches (4.75mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Tab Length: 0.248 inches (6.30mm)
  • Insulation Diameter: 0.067-0.170 inches (1.70-4.32mm)
