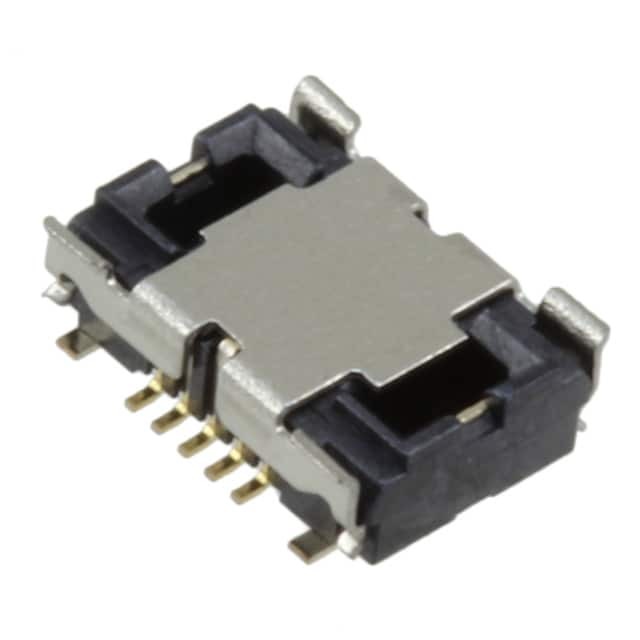

Same model may have multiple batches, images only for reference.
AXT310164
Same model may have multiple batches, images only for reference.

AXT310164

Part No AXT310164
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 10POS SMD GOLD / 10 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series P4S
Package Tape & Reel
Product Status Obsolete
Connector Type Socket, Outer Shroud Contacts
Number of Positions 10
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm, 2mm
Height Above Board 0.057" (1.45mm)
Base Product Number AXT310
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 912361-AXT310164
Ultra Librarian 3D Model Ultra Librarian AXT310164 CAD Model

Description

The AXT310164 rectangular connector array from Panasonic is a versatile electronic component designed for board-to-board connections.

  • Positions: 10 positions
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention and gold contact finish
  • Height Above the Board: 0.057" (1.45mm)
  • Mounting: Surface mountable
  • Packaging: Tape & reel package of 1,000 pcs
  • Status: Obsolete
