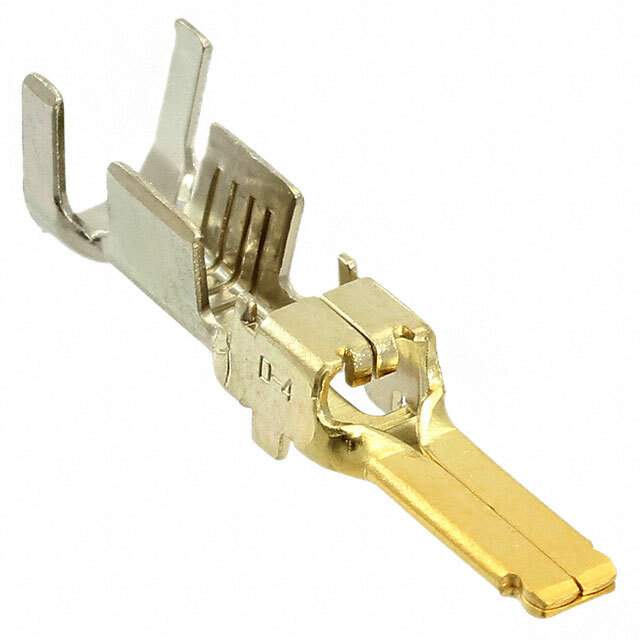

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Contacts
Mfr TE Connectivity AMP Connectors
Series Dynamic D-4200
Package Bulk
Pin or Socket Tab
Contact Termination Crimp
Wire Gauge 12-14 AWG
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 1747500
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names A116540,-1747500-2-SI,2266-1747500-2,-1747500-2-CSI
Standard Package 500
Win Source Part Number 1016124-1747500-2
Ultra Librarian 3D Model Ultra Librarian 1747500-2 CAD Model

Description

The Dynamic D-4200 series from TE Connectivity AMP Connectors features high-quality rectangular connectors with gold plated contact finish for efficient performance.

  • Series: Dynamic D-4200
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Termination: Crimp
  • Contact Type: Tab
  • Wire Gauge: 12-14 AWG
  • Package: Bulk
  • Standard Package: 500
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.90.4000
  • REACH Status: Vendor Undefined
