Same model may have multiple batches, images only for reference.

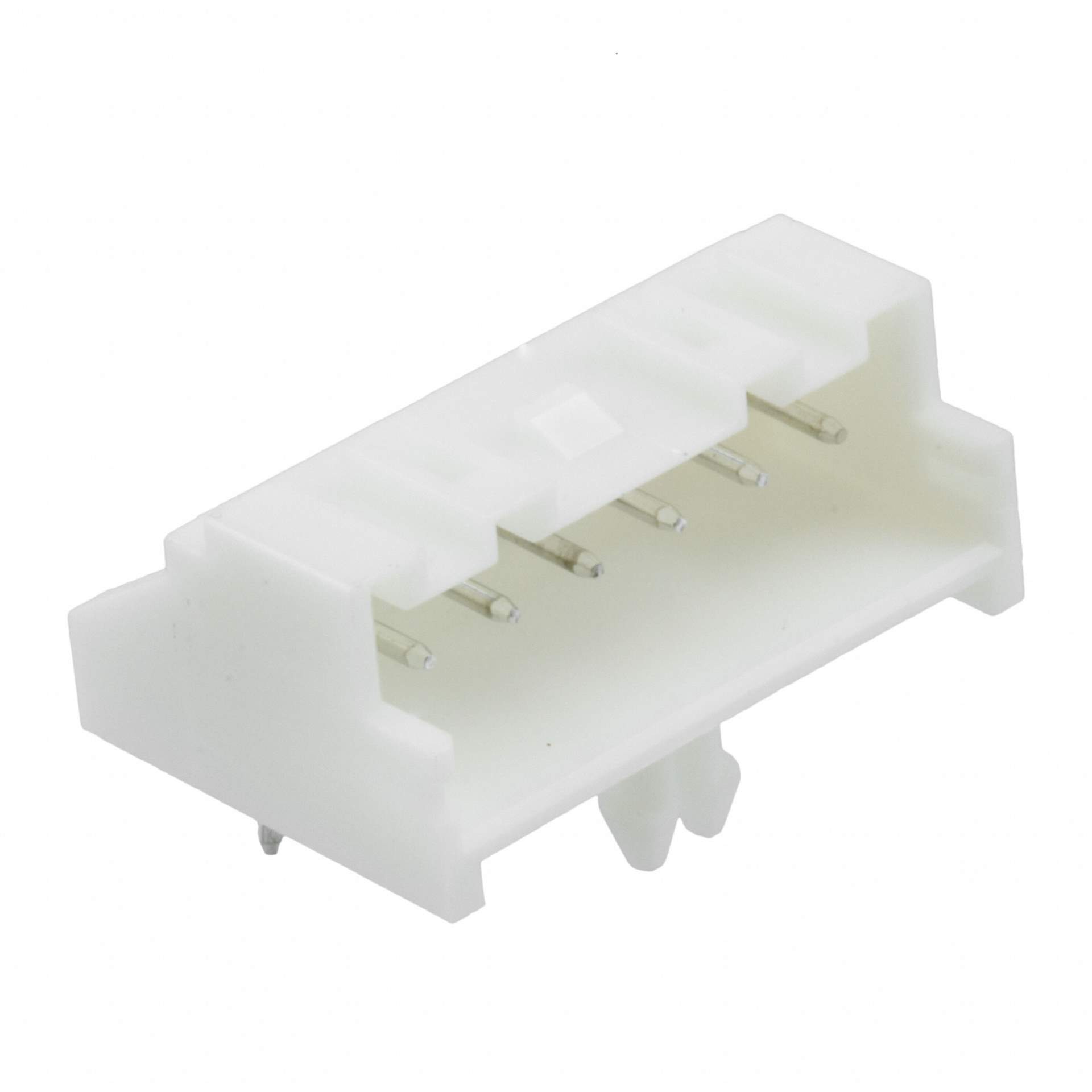

1744426-6 Real Image
Same model may have multiple batches, images only for reference.

1744426-6

Part No 1744426-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 6POS 2.5MM / Connector Header Through Hole, Right Angle 6 position 0.098" (2.50mm)
Datasheet
1744426-6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Economy Power 2.5
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Friction Lock
Contact Length - Mating 0.141" (3.60mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.299" (7.60mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) 4.2A
Voltage Rating 250VAC
Applications General Purpose, Industrial, Lighting
Base Product Number 1744426
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-1744426-6,A116502,-1744426-6-SI
Standard Package 450
Win Source Part Number 1018061-1744426-6
Ultra Librarian 3D Model Ultra Librarian 1744426-6 CAD Model

Description

The TE Connectivity 1744426-6 is a male pin header connector with 6 positions.

  • Series: Economy Power 2.5
  • Positions: 6
  • Insulation Color: White
  • Insulation Material: Polyamide (PA), Nylon
  • Supply and Demand: Balanced
  • Pitch-Mating: 0.098" (2.50mm)
  • Contact Finish-Mating: Tin
  • Contact Finish-Post: Tin
  • Insulation Height: 0.299" (7.60mm)
  • Current Rating: 4.2A
  • Temperature Range: -55°C to 105°C
  • Mounting Type: Through-Hole, Right Angle
  • Shrouding: Shrouded - 4 Wall
  • Standard Package: 450 pieces
