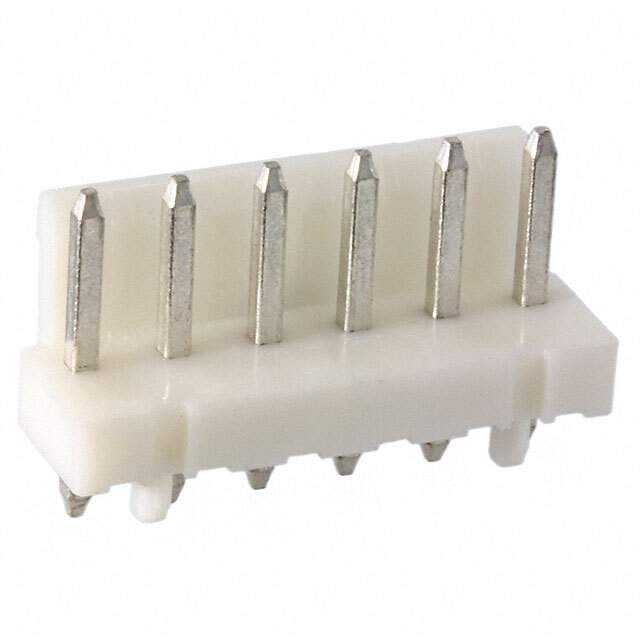

Name: 1744057-6
Brand: TE Connectivity
SKU: 801956
Availability: InStock
Rating: 4.84 (5 reviews)

Products specifications Report Issue?

Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.303" (7.70mm)
Contact Length - Post	0.145" (3.68mm)
Overall Contact Length	0.575" (14.60mm)
Insulation Height	0.127" (3.22mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	120.0μin (3.05μm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Features	Board Guide
Temperature Range - Operating	-25°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	7.5A
Voltage Rating	250VAC
Contact Finish Thickness - Post	120.0μin (3.05μm)
Applications	General Purpose, Industrial, Lighting
Manufacturer Pack Quantity	1,000
MSL Level	1 (Unlimited)
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	801956-1744057-6
Ultra Librarian 3D Model	Ultra Librarian 1744057-6 CAD Model

Description

The TE Connectivity AMP Connectors header is a through-hole mounting style connector.

Features: Board Guide
Connector Type: Male Pin
Positions Loaded: All
Rows: Single
Termination: Solder
Fastening Type: Friction Lock
Contact Material: Brass
Voltage Rating: 250VAC
Insulation Material: Polyamide (PA66), Nylon 6/6
Flammability Rating: UL94 V-0
Applications: General Purpose, Industrial, Lighting
Pitch: 0.156" (3.96mm)
Contact Finish: Tin
Contact Finish Thickness: 120.0μin (3.05μm)
Insulation Color: Natural
Shrouding: 1 wall
Contact Length (Post): 0.145" (3.68mm)
Contact Length (Overall): 0.575" (14.60mm)
Insulation Height: 0.127" (3.22mm)
Contact Shape: Square
Operating Temperature: -25°C ~ 105°C
Current Rating: 7.5A
