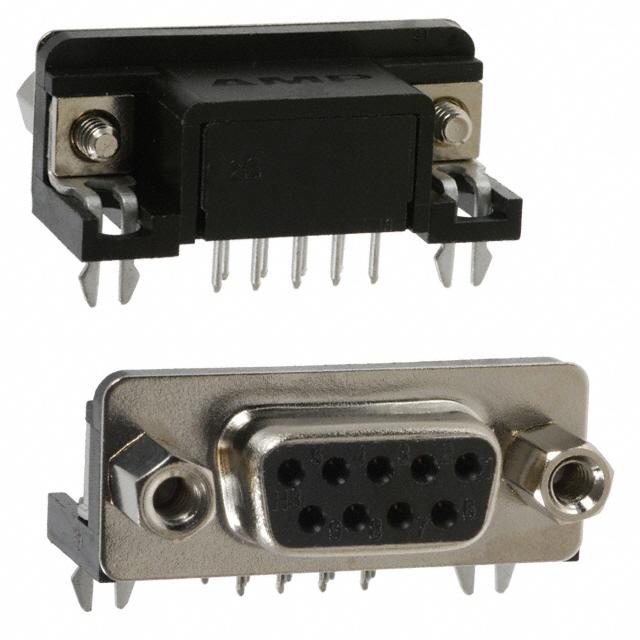

1734354-2 TE Connectivity
Same model may have multiple batches, images only for reference.

1734354-2

Part No 1734354-2
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB RCPT 9POS R/A SOLDER
Datasheet
1734354-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Packaging Bulk
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Mounting Through Hole, Right Angle
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Features Board Lock
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 15μin (0.38μm)
Material Flammability Rating UL94 V-0
Operating Temperature Range -55°C ~ 105°C
Voltage Rating 250V
Current Rating 2A
Color Black
Housing Material Polyamide (PA9T), Nylon 9T, Glass Filled
Contact Material Phosphor Bronze
Backset Spacing 0.318" (8.08mm)
Win Source Part Number 760611-1734354-2
Popularity Medium
Supply and Demand Status Balance
Family Name 1734354
Introduction Date March 10, 2008
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 1734354-2 CAD Model

Description

The 760611-1734354-2 is a 9-position AMPLIMITE HD-20 D-sub connector by TE Connectivity AMP Connectors. It is a receptacle connector with female sockets, and it is designed for signal contact type.

  • Connector Type: Receptacle
  • Contact Type: Female Sockets
  • Mounting Style: Through-hole, Right Angle
  • Features: Flange, Female Screw Lock (4-40)
  • Voltage Rating: 250V
  • Current Rating: 2A
  • Material: Polyamide (PA9T), Nylon 9T, Glass Filled
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature: -55°C ~ 105°C
  • Shielding: Yes
  • Ingress Protection: IP65 (Dust Tight, Water-Resistant)
