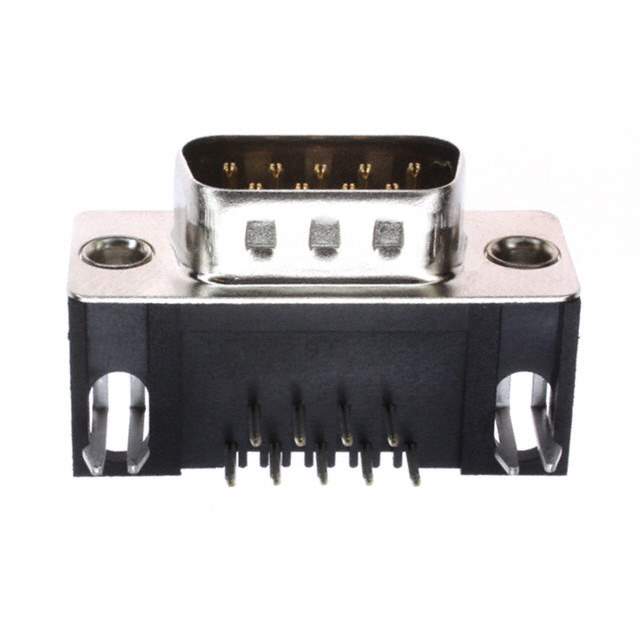

1734352-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Bulk
Product Status Obsolete
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Current Rating (Amps) 2A
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Grounding Indents
Voltage Rating 250V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Temperature Range - Operating -55°C ~ 105°C
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 17343521,A35113
Standard Package 90
Win Source Part Number 1032639-1734352-1
Ultra Librarian 3D Model Ultra Librarian 1734352-1 CAD Model

Description

The AMPLIMITE HD-20 series D-Sub connector is a 9 position plug with male pins and a black color.

  • Series: AMPLIMITE HD-20
  • Type: D-Sub connector
  • Positions: 9
  • Type: plug
  • Pins: male
  • Color: black
  • Features: board lock, grounding indents
  • Contact Finish: flash gold
  • Voltage Rating: 250V
  • Shell Material: steel, nickel plated
  • Dielectric Material: polybutylene terephthalate (PBT)
  • Mounting Type: through-hole, right-angle
  • Temperature Range: -55°C to 105°C
  • Contact Type: signal
  • Backset Spacing: 0.318 inches (8.08mm)
  • Package: bulk
  • Standard Package: 90
  • Flange Feature: housing/shell (4-40)
  • ECCN: EAR99
  • Status: obsolete
  • RoHS: not applicable
