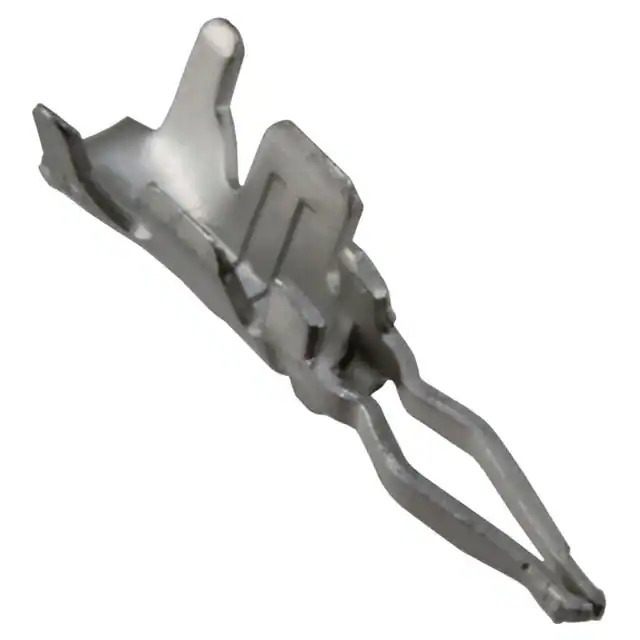

172782-5 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Wire to Board Connectors
Mfr TE Connectivity AMP Connectors
Series Mini Amp-In
Package Tape & Reel (TR)
Product Status Active
Terminal Type Through Board
Hole Diameter 0.047" ~ 0.063" (1.19mm ~ 1.60mm)
Insulation Diameter -
Length - Overall 0.335" (8.50mm)
Wire Gauge 22-26 AWG
Contact Material Brass
Contact Finish Tin
Base Product Number 172782
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363359-172782-5
Ultra Librarian 3D Model Ultra Librarian 172782-5 CAD Model

Description

The Mini Amp-In wire-to-board connector is a high-quality component manufactured by TE Connectivity AMP Connectors.

  • Contact Finish: Tin
  • Wire Gauge: 22 ~ 26 AWG
  • Length: 0.335 inches (8.50mm)
  • Terminal Type: Through Board
  • Hole Diameter: 0.047 ~ 0.063 inches (1.19 ~ 1.60mm)
  • Series: Active
  • Packaging: Tape & Reel
