Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 14 Weeks
Features Rectangular Connectors - Housings
Manufacturer TE Connectivity
Series Mini-Universal MATE-N-LOK
Package Bulk
Family Name 172168
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number 2266-172168-1, -172168-1-SI, -172168-1-LSI, 1721681, A25573, -172168-1-CSI
Quantity per package 500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 845654-172168-1
Ultra Librarian 3D Model Ultra Librarian 172168-1 CAD Model

Description

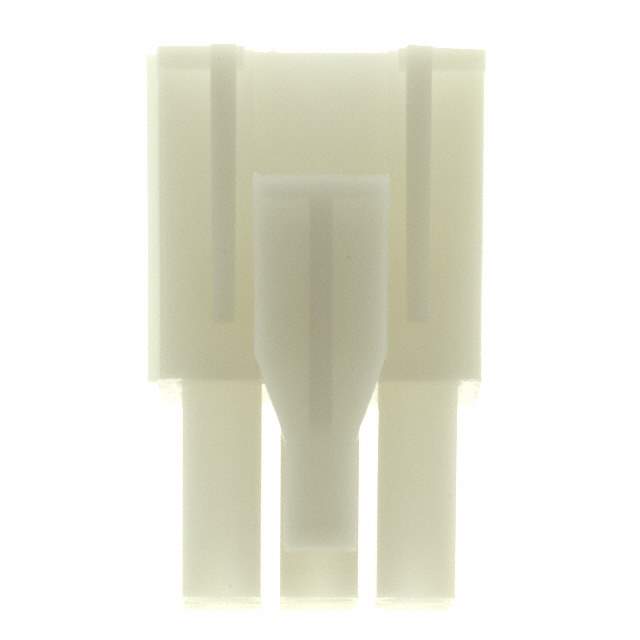

The 172168-1 is a rectangular connector manufactured by TE Connectivity. This connector is part of TE's broad range of interconnect solutions, designed for reliable and efficient signal and power transmission in various applications. It features durable construction and is engineered to withstand harsh environments. This particular connector is designed for wire-to-board connections.

Applications:

  • Industrial machinery
  • Automotive electronics
  • Data communication equipment
  • Power supplies
  • Medical devices

Features:

  • Durable housing material
  • Positive locking mechanism
  • High contact density
  • Wire-to-board configuration
  • Various plating options available

Benefits:

  • Reliable connection in demanding environments
  • Secure mating prevents accidental disconnections
  • Compact design saves space
  • Versatile use across different applications
  • Customizable options to meet specific requirements

Specifications:

The 172168-1 connector typically supports a voltage rating of up to 250V and a current rating dependent on the specific contacts used, often around 3A. It is made with a housing material that is resistant to chemicals and temperature variations, like PA66. The number of contacts varies depending on the specific configuration. The connector features a polarization key to ensure correct mating. The operating temperature ranges from -40°C to +105°C.
