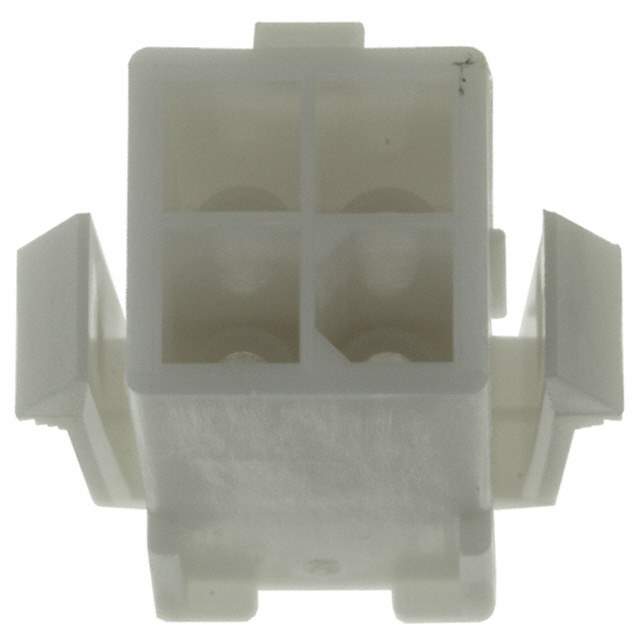

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Connector Type Receptacle
Contact Type Male or Female
Number of Positions 4
Pitch 0.163" (4.14mm)
Number of Rows 2
Row Spacing 0.163" (4.14mm)
Mounting Panel Mount, Snap-In
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Win Source Part Number 1001709-172159-1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 172159
Introduction Date May 27, 2005
ECCN EAR99
Country of Origin China, Germany, Singapore, Switzerland, United States of America
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 172159-1 CAD Model

Description

The TE Connectivity AMP Connectors 1001709-172159-1 is a panel-mount, snap-in connector with a locking ramp for added security.

  • Mounting Type: Panel Mount, Snap-In
  • Features: Locking Ramp
  • Positions: Four
  • Pitch: 0.163" (4.14mm)
  • Color: Natural
  • Gender: Male or Female
  • Estimated EOL Date: 2027
  • Compliance: Halogen-Free
