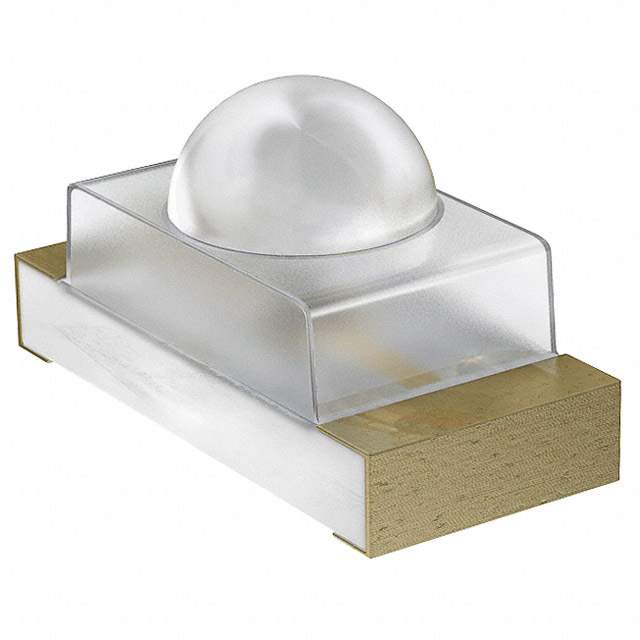

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 150mcd
Lens Style Round with Domed Top
Lens Size 0.80mm Dia
Voltage - Forward (Vf) (Typ) 1.75V
Current - Test 2mA
Viewing Angle 40°
Mounting Type Surface Mount
Wavelength - Dominant 630nm
Wavelength - Peak 645nm
Package / Case 0805 (2012 Metric)
Supplier Device Package 2012
Size / Dimension 2.00mm L x 1.25mm W
Height (Max) 1.15mm
Base Product Number APTD2012
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1338739-APTD2012LSURCK
Ultra Librarian 3D Model Ultra Librarian APTD2012LSURCK CAD Model

Description

The Kingbright APTD2012LSURCK is a surface mount LED indication module that is perfect for applications that require a compact and efficient display.

  • LED Color: Red
  • Millicandela Rating: 150mcd
  • Forward Voltage: 1.75V
  • Viewing Angle: 40 degrees
  • Lens Style: Round with Domed Top
  • Package/Case: 0805
  • Dimension: 2.00mm L x 1.25mm W
  • REACH: Unaffected
  • ECCN: EAR99
