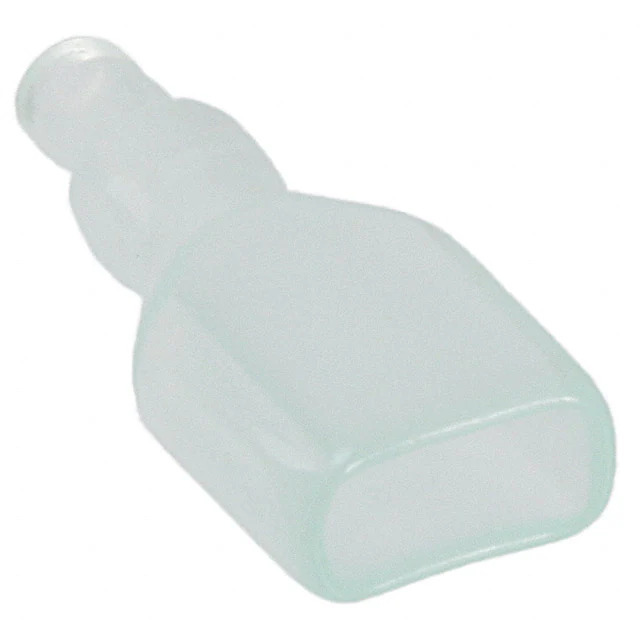

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Housings, Boots
Mfr TE Connectivity AMP Connectors
Series Faston
Package Bulk
Product Status Active
Style Sleeve
Terminal Type Quick Connect, Disconnect
Gender Female, Receptacle
Terminal Size 0.250" (6.35mm)
Number of Positions 1
Stacking Direction -
For Use With/Related Products 0.250" (6.35mm) Quick Connects
Mounting Type Free Hanging (In-Line)
Color Clear
Material Vinyl Chloride
Note Contacts Not Included
Base Product Number 170823
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1363904-170823-3
Ultra Librarian 3D Model Ultra Librarian 170823-3 CAD Model

Description

The TE Connectivity AMP Connectors Faston series offers a wide range of terminal housings and boots for quick connect and disconnect applications from TE Connectivity AMP Connectors.

  • Type: Female receptacle terminal housing
  • Accommodates: 0.250" (6.35mm) quick connects
  • Design: Sleeve-style
  • Material: Clear vinyl chloride
  • Positions: Single position
  • Compatible with: Various related products
  • Provides: Secure and reliable connection
  • Series: Faston series
