Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 0603
Case Code (Imperial) 0603
Case / Package 1608
Composition Thick Film
Contact Plating Tin
Depth 800 µm
Height 450 µm
Length 1.6 mm
Maximum Operating Temperature 155 °C
Military Standard Not
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Pins 2
Packaging Cut Tape
Power Rating 200 mW
Radiation Hardening No
REACH SVHC No SVHC
Resistance 2.2 kΩ
RoHS Compliant
Temperature Coefficient 200 ppm/°C
Termination SMD/SMT
Tolerance 1 %
Voltage Rating 150 V
Voltage Rating (DC) 150 V
Width 800 µm
Win Source Part Number 984087-ERJP03F2201V
Categories Chip Resistor - Surface Mount
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian ERJP03F2201V CAD Model

Description

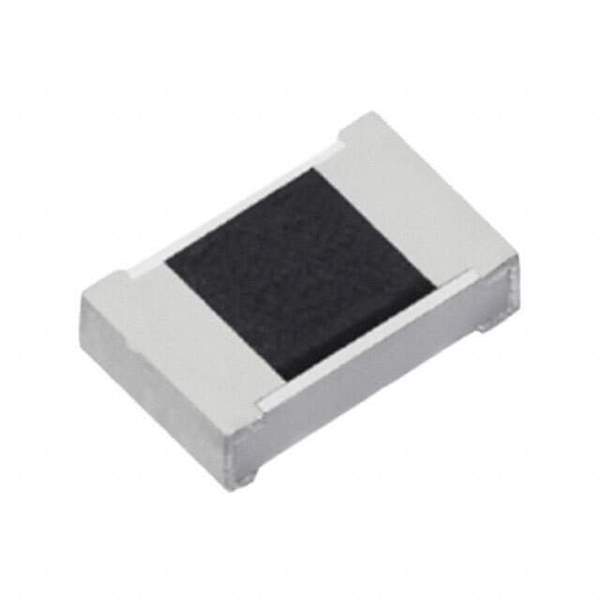

The ERJP03F2201V is a chip resistor from Panasonic.

  • Resistance: 2.2 kΩ
  • Power Rating: 200 mW
  • Packaging: Cut Tape
  • Mounting: Surface Mount
  • RoHS Compliant: Yes
  • Voltage Rating: 150V
  • Tolerance: 1%
  • Temperature Coefficient: 200 ppm/°C
  • Minimum Operating Temperature: -55°C
  • Maximum Operating Temperature: 155°C
  • Win Source Part Number: 984087
  • Case/Package: 1608 and 0603
