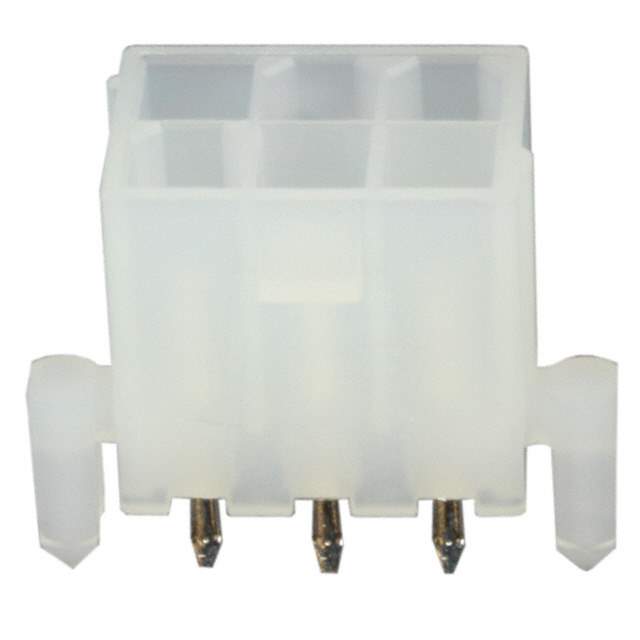

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series Mini-Fit Jr 5566
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.504" (12.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 35.4µin (0.90µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Lock
Material Flammability Rating UL94 V-2
Insulation Color Natural
Contact Finish Thickness - Post 35.0µin (0.90µm)
Applications General Purpose, Industrial, Telecommunications
Base Product Number 003929
Other Names 0039-29-9062-E,39-29-9062,5566-06B2,0039-29-9062,0039299062-E,39299062-E,39-29-9062-E,WM7326,39299062
Standard Package 3,840
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293220-39299062
Ultra Librarian 3D Model Ultra Librarian 39299062 CAD Model

Description

The Molex Mini-Fit Jr 5566 1293220-39299062 is a rectangular connector that is ideal for use in general purpose, industrial and telecommunications applications.

  • Applications: General Purpose, Industrial, Telecommunications
  • Positions: 6
  • Board Lock: Yes
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: 2
  • Termination: Solder
  • Fastening Type: Locking Ramp
  • Contact Material: Brass
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Contact Finish-Mating: Tin
  • Contact Finish Thickness-Mating: 35.4μin (0.90μm)
  • Contact Finish-Post: Tin
  • Contact Finish Thickness-Post: 35.0μin (0.90μm)
  • Insulation Color: Natural
  • Mounting Type: Through Hole
  • Shrouding: Shrouded-4 Wall
  • Row Spacing-Mating: 0.165 inches (4.20mm)
  • Contact Length-Post: 0.138 inches (3.50mm)
  • Insulation Height: 0.504 inches (12.80mm)
  • Contact Shape: Square
  • Operating Temperature: Not Specified
