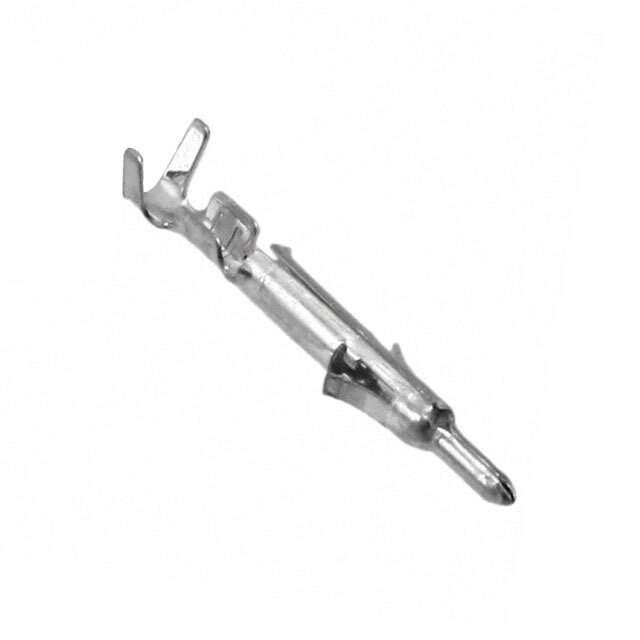

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 21 Weeks
Features Pin Contact Tin Crimp 22-26 AWG Stamped
Manufacturer TE Connectivity
Series Mini-Universal MATE-N-LOK
Package Reel - TR
Family Name 170359
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A97685-ND, -170359-1-SI, A97685CT, 1703591, A97685, -170359-1-CSI, A97685TR, 170359-1-ND
Quantity per package 6000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905454-170359-1
Ultra Librarian 3D Model Ultra Librarian 170359-1 CAD Model

Description

The Mini-Universal MATE-N-LOK Pin Contact Tin Crimp is a high-quality electronic component manufactured by TE Connectivity.

  • Wire Sizes: Can accommodate 22-26 AWG wire sizes
  • Package: Comes in a reel format
  • Pieces per package: 6000 pieces per package
  • Supply and Demand: Balance of supply and demand
  • Popularity: High
  • Estimated Production Lead Time: 21 weeks
  • Vendor REACH Status: Not defined in Vendor REACH Status
  • Category: Connectors
  • ECCN: EAR99
  • Part Numbers: A97685-ND, -170359-1-SI, A97685CT, 1703591, A97685, -170359-1-CSI, A97685TR, and 170359-1-ND
