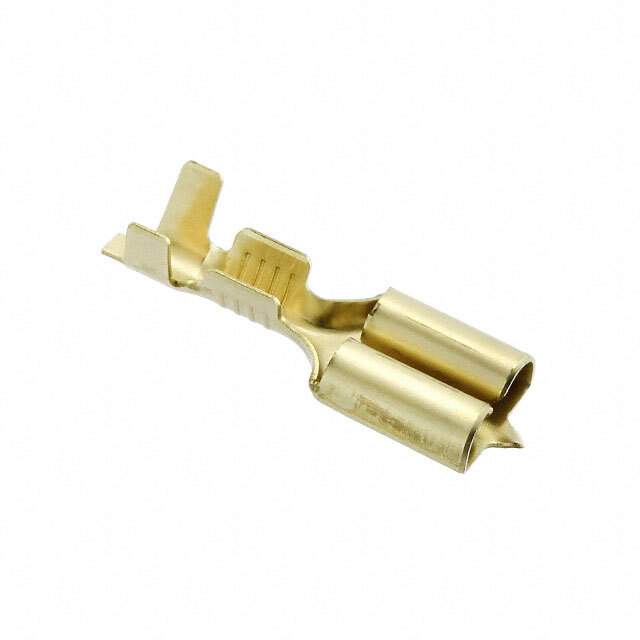

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.307" (7.80mm)
Length - Overall 0.756" (19.20mm)
Termination Crimp
Wire Gauge 14-20 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Insulation Diameter 0.085" ~ 0.135" (2.16mm ~ 3.43mm)
Base Product Number 170032
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 170032-2-ND,A101733TR,A101733CT,-170032-2-SI,1700322,-170032-2-CSI
Standard Package 6,000
Win Source Part Number 1333540-170032-2
Ultra Librarian 3D Model Ultra Librarian 170032-2 CAD Model

Description

The 1333540-170032-2 is a female connector manufactured by TE Connectivity AMP Connectors.

  • Connector Type: Quick Connect/Disconnect
  • Termination: Crimp
  • Wire Gauge: 14-20 AWG
  • Standard Package: 6,000
  • Mounting: Free-Hanging (In-Line)
  • Insulation: Non-Insulated
  • Tab Width: 0.250" (6.35mm)
  • RoHS3 Compliant: Yes
  • REACH: Unaffected
