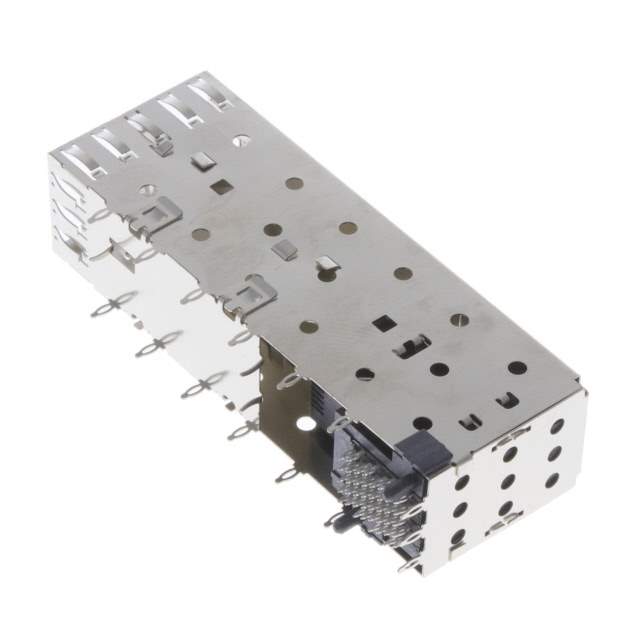

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 12 Weeks
Features 40 (20 x 2) Position SFP Receptacle with Cage, Ganged (2x1) Connector Press-Fit Through Hole, Right Angle
Manufacturer TE Connectivity
Package Tray
Mounting Through Hole, Right Angle
Family Name 1658859
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 1658859-2-ND, A130931
Quantity per package 24
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905434-1658859-2
Ultra Librarian 3D Model Ultra Librarian 1658859-2 CAD Model

Description

The 40 (20 x 2) Position SFP Receptacle with Cage, Ganged (2x1) Connector Press-Fit Through Hole, Right Angle is a high-quality connector manufactured by TE Connectivity.

  • Family: Part of the 1658859 family
  • Package: Comes in a tray package
  • Mounting: Mounted through hole, right angle
  • Popularity: Popular choice among manufacturers and has a high demand in the market
  • Estimated Production Lead Time: 12 weeks
  • Compliance: ECCN EAR99 compliant
  • HTSUS Code: 8536.69.8000
  • Other part numbers: 1658859-2-ND and A130931
