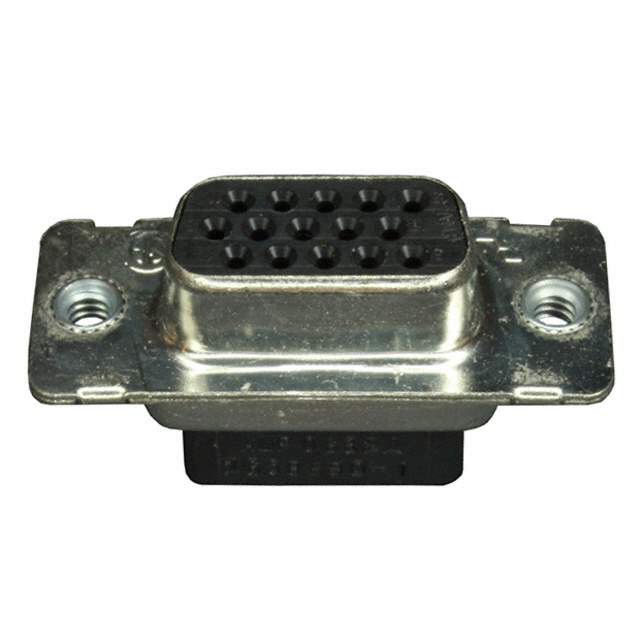

1658690-1 Real Image
Same model may have multiple batches, images only for reference.

1658690-1

Part No 1658690-1
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB HD HOUSING RCPT 15POS / Receptacle for Female Contacts Housing D-Sub, High Density Connector 15 Position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub, D-Shaped Connector Housings
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Style D-Sub, High Density
Connector Type Receptacle for Female Contacts
Number of Positions 15
Number of Rows 3
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Mounting Free Hanging (In-Line)
Flange Feature Cable Side (4-40)
Shell Material, Finish Steel, Tin Plated
Shell Finish Thickness 200µin (5.08µm)
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 1658690
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number 2266-1658690-1,16586901
Standard Package 800
Win Source Part Number 1333194-1658690-1
Ultra Librarian 3D Model Ultra Librarian 1658690-1 CAD Model

Description

TE Connectivity AMP Connectors presents a high-density D-sub connector housing with a receptacle for 15 female contacts.

  • Connector Style: High-Density D-sub
  • Receptacle: For 15 Female Contacts
  • Feature: Cable-Side Flange
  • Material: Steel
  • Finish: Tin-Plated
  • Dielectric Material: Polyamide (PA), Nylon, Glass Filled
  • Mounting: Free Hanging (In-Line)
  • Number of Rows: 3
  • Shell Size: 1 (DE, E)
  • Color: Black
  • Contacts: Not Included
