1634201-4

Part No 1634201-4
Manufacturer TE Connectivity
Catalog Rocker Switches

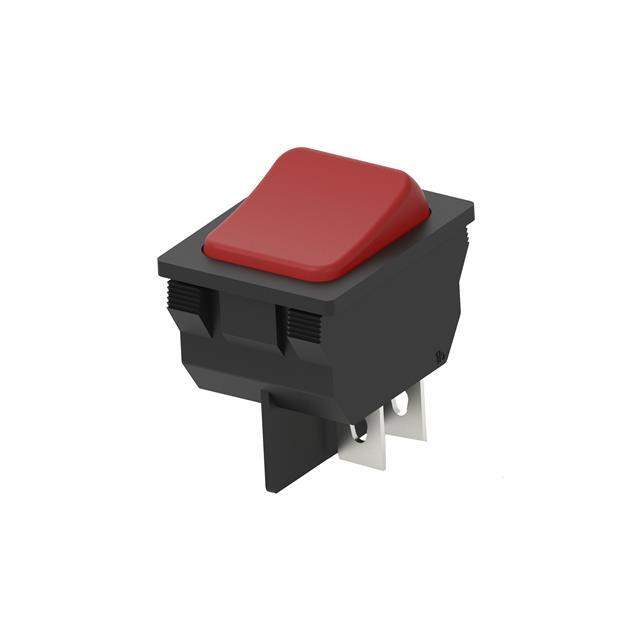

Description PRFDB1-16F-BR000 / Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series PRF
Package Bulk
Mounting Type Panel Mount, Snap-In
Circuit DPST
Switch Function On-Off
Current Rating (Amps) 16A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Red
Actuator Marking No Marking
Termination Style Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions Rectangular - 30.20mm x 22.20mm
Temperature Range - Operating -20°C ~ 85°C
Base Product Number 1634201
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Other Names -1634201-4-SI,-PRFDD1-16F-BB000-SI,-PRFDD1-16F-BB000-SI-ND,PRFDB1-16F-BR000
Standard Package 50
Win Source Part Number 1054548-1634201-4
Ultra Librarian 3D Model Ultra Librarian 1634201-4 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches PRFDD1-16F-BB000 is an electronic component product.

  • Win Source Part Number: 1054548-1634201-4
  • Supply and Demand Status: Unknown
  • Switch Function: DPST On-Off
  • Voltage Rating: 125VAC
  • Current Rating: 16A (AC)
  • Temperature Range: -20°C to 85°C
  • Panel Cutout Dimension: 30.20mm x 22.20mm
