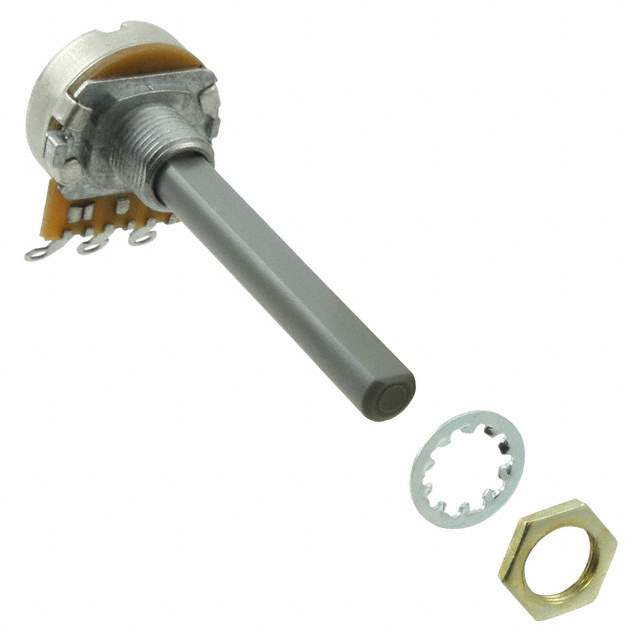

1624134-2 Real Image
Same model may have multiple batches, images only for reference.

1624134-2

Part No 1624134-2
Manufacturer TE Connectivity
Catalog Potentiometers, Variable Resistors
Description Potentiometer Carbon Linear Taper Rotary 220 kOhms Power 0.4W Type 23 Series
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Actuator Diameter 6.35 mm
Actuator Length 50.0126 mm
Composition Carbon
Depth 20.4 mm
ELV Compliant
Height 25.2 mm
Length 60.7 mm
Max Operating Temperature 70 °C
Max Power Dissipation 400 mW
Military Standard Not
Min Operating Temperature -25 °C
Mount Panel
Number of Gangs 1
Number of Turns 1
Packaging Bulk
Power Rating 400 mW
Radiation Hardening No
REACH SVHC Unknown
Resistance 220 kΩ
RoHS Compliant
Taper Linear
Termination Eyelet, Pin
Tolerance 20 %
Type Potentiometer
Voltage Rating 500 V
Voltage Rating (AC) 500 V
Voltage Rating (DC) 500 V
Win Source Part Number 1208044-1624134-2
Categories Potentiometers,Variable Resistors
Manufacturer TE Connectivity
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1624134-2 CAD Model

Description

The TE Connectivity Potentiometer is a high-quality potentiometer that is designed for a wide range of applications.

  • Win Source Part Number: 1208044-1624134-2
  • Package: Bulk
  • Type: Variable resistor
  • Function: Used to control the voltage in a circuit
  • Voltage Rating: 500 V
  • Resistance: 220 kΩ
  • Taper: Linear
  • Power Rating: 400 mW
  • Length: 60.7 mm
  • Height: 25.2 mm
  • Depth: 20.4 mm
  • RoHS Compliant: Yes
  • Supply and Demand Status: Limited
