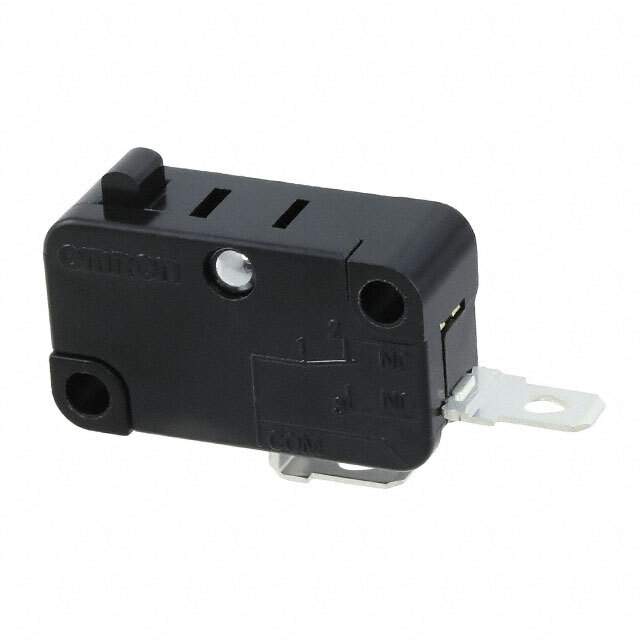

V-15-3A5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series V
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 15A (AC), 600mA (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Solder, Quick Connect - 0.187" (4.7mm)
Ingress Protection IP40
Operating Force 200gf
Release Force 50gf
Pretravel 0.047" (1.2mm)
Differential Travel 0.016" (0.4mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -25°C ~ 80°C
Operating Position 0.579" (14.7mm)
Electrical Life 100,000 Cycles
Mechanical Life 50,000,000 Cycles
Base Product Number V-15
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040
Other Names -V-15-3A5,V153A5,V153A5BYOMI,Z4615,V-15-3A5-ND
Standard Package 100
Win Source Part Number 1103586-V-15-3A5
Ultra Librarian 3D Model Ultra Librarian V-15-3A5 CAD Model

Description

The V-15-3A5 limit switch is a SPST-NO circuit with an off-mom switch function. The V-15-3A5 has a round pin plunger actuator type.

  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Round pin plunger
  • Voltage Rating: 250VAC and 125VDC
  • Current Rating: 15A (AC) and 600mA (DC)
  • Temperature Range: -25°C to 80°C
  • Mechanical Life: 50,000,000 cycles
  • Electrical Life: 100,000 cycles
  • Mounting Type: Chassis mount
  • Pretravel: 0.047" (1.2mm)
  • Differential Travel: 0.016" (0.4mm)
  • Overtravel: 0.040" (1.0mm)
  • Operating Force: 200gf
  • Release Force: 50gf
