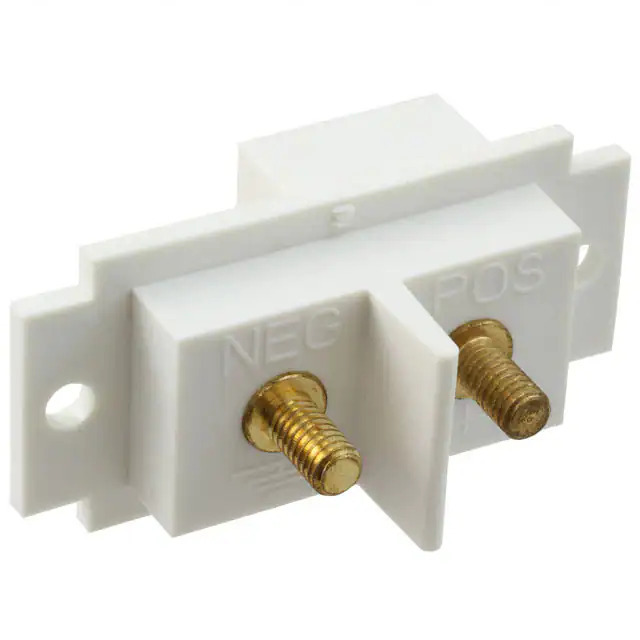

1604797-1 TE Connectivity
Same model may have multiple batches, images only for reference.

1604797-1

Part No 1604797-1
Manufacturer TE Connectivity
Catalog Unclassified
Description TERM BLK BATT STUD 2POS 94.0MM / 2 Position Terminal Block White Battery Stud 94.0mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Specialized
Mfr TE Connectivity AMP Connectors
Series Buchanan
Package Bulk
Product Status Active
Type Battery Stud
Mounting Type Panel Mount
Number of Positions 2
Number of Levels 1
Terminal - Width 94.0mm
Termination Style Stud
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm² -
Features Positions Stamped
Housing Color White
Length -
Height (Max) -
Material - Insulation Polybutylene Terephthalate (PBT)
Material Flammability Rating UL94 V-0
Stripping Length -
Temperature Range - Operating -40°C ~ 130°C
Base Product Number 1604797
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 1354283-1604797-1
Ultra Librarian 3D Model Ultra Librarian 1604797-1 CAD Model

Description

The 1354283-1604797-1 is a specialized terminal block manufactured by TE Connectivity AMP Connectors.

  • Series: Buchanan
  • Mounting Type: Panel Mount
  • Connection Type: Battery Stud
  • Number of Positions: 2
  • Positions Feature: Stamped Positions
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Housing Color: White
  • Terminal Width: 94.0mm
