Same model may have multiple batches, images only for reference.

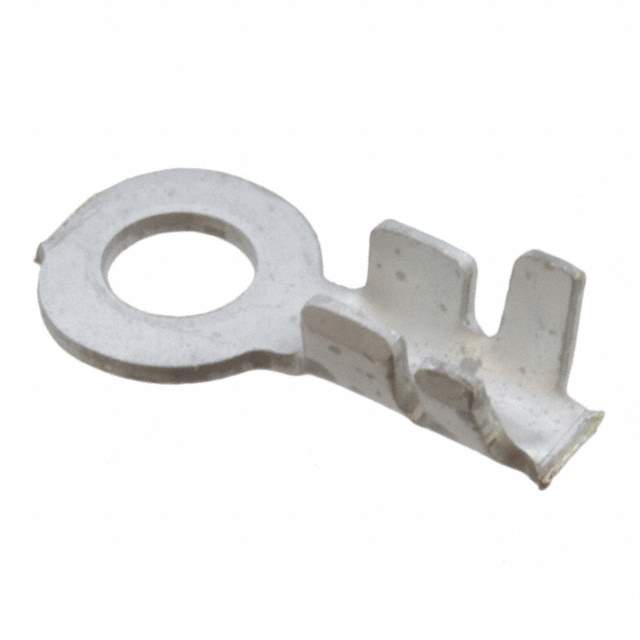

160344-2 Real Image
Same model may have multiple batches, images only for reference.

160344-2

Part No 160344-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 15-20AWG M3 CRIMP / Ring Terminal Connector M3 Stud Circular 15-20 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Circular
Stud/Tab Size M3 Stud
Thickness 0.024" (0.61mm)
Width - Outer Edges 0.244" (6.20mm)
Length - Overall 0.461" (11.71mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 15-20 AWG
Insulation Non-Insulated
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.075" ~ 0.110" (1.91mm ~ 2.79mm)
Base Product Number 160344
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 160344-2-ND,1603442,A107160TR,A107160CT
Standard Package 15,000
Win Source Part Number 1333521-160344-2
Ultra Librarian 3D Model Ultra Librarian 160344-2 CAD Model

Description

The TE Connectivity AMP Connectors 1333521-160344-2 is a circular terminal ring connector in free hanging (in-line) mounting style.

  • Mounting Style: Free Hanging (In-Line)
  • Stud/Tab Size: M3 Stud
  • Wire Gauge: 15-20 AWG
  • Contact Material: Brass
  • Contact Finish: Tin
  • Insulated: Non-Insulated
  • Insulation Diameter: 0.075" ~ 0.110" (1.91mm ~ 2.79mm)
  • Thickness: 0.024" (0.61mm)
  • Width: 0.244" (6.20mm)
  • Overall Length: 0.461" (11.71mm)
  • RoHS Compliant: Yes
  • Operating Temperature: -55°C to 125°C
