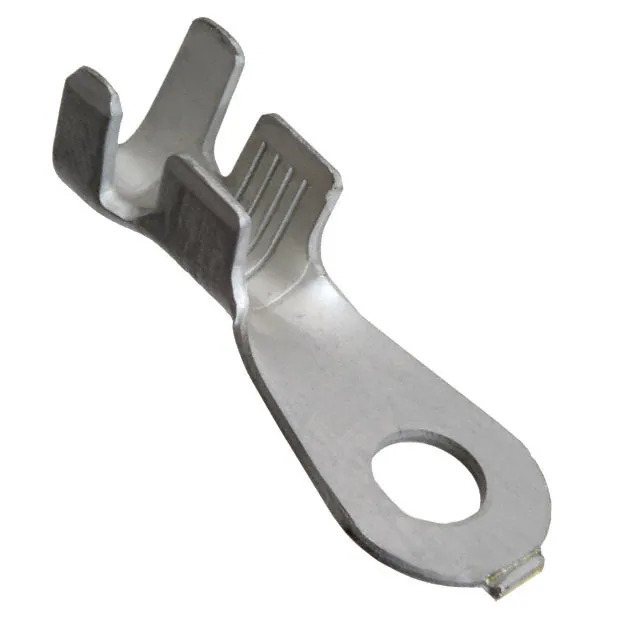

160163-2 TE Connectivity
Same model may have multiple batches, images only for reference.

160163-2

Part No 160163-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 10-12AWG M4 CRIMP / Ring Terminal Connector M4 Stud Circular 10-12 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Terminal Type Circular
Stud/Tab Size M4 Stud
Thickness 0.030" (0.76mm)
Width - Outer Edges 0.354" (9.00mm)
Length - Overall 0.945" (24.00mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Non-Insulated
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.150" ~ 0.209" (3.81mm ~ 5.31mm)
Material - Insulation -
Base Product Number 160163
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364867-160163-2
Ultra Librarian 3D Model Ultra Librarian 160163-2 CAD Model

Description

The TE Connectivity AMP Connectors Ring Connector is a versatile component for electrical connections.

  • Mounting Type: Free Hanging (In-Line)
  • Wire Gauge: 10-12 AWG
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Length: 0.945" (24.00mm)
  • Width: 0.354" (9.00mm)
  • Terminal Type: Circular
  • Product Status: Active
