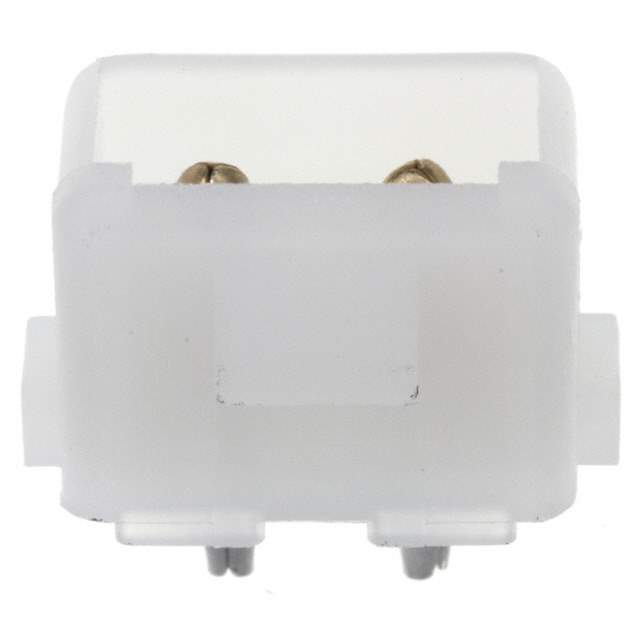

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Commercial MATE-N-LOK
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.200" (5.08mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.375" (9.53mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Insulation Color Natural
Applications General Purpose
Base Product Number 1586530
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 15865302,A32186
Standard Package 100
Win Source Part Number 999474-1586530-2
Ultra Librarian 3D Model Ultra Librarian 1586530-2 CAD Model

Description

The TE Connectivity AMP Connectors 1586530-2 is a 2-position male pin header connector. Its Win Source Part Number is 999474-1586530-2. This component belongs to the Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins category. It has a commercial MATE-N-LOK series. This connector has a shrouded - 4 wall and through-hole mounting type. The contact finish-mating is gold with a thickness of 30.0μin (0.76μm) and the contact finish-post is tin. The insulation material is Polyamide (PA), Nylon. This connector has a pitch-mating of 0.200" (5.08mm) and a contact length-post of 0.150" (3.81mm). The overall contact length, temperature range-operating and contact length-mating are not mentioned in the given data. This connector has an ECCN of EAR99 and its HTSUS is 8536.69.4040.
