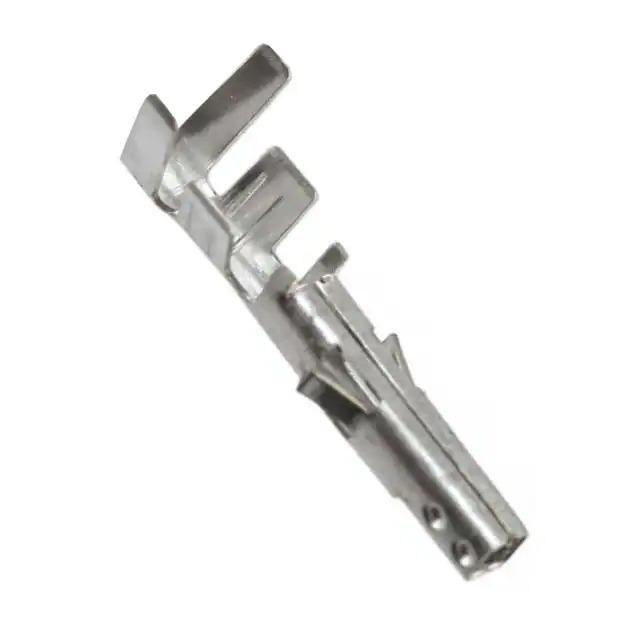

1586055-3 TE Connectivity
Same model may have multiple batches, images only for reference.

1586055-3

Part No 1586055-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN SOCKET 16AWG CRIMP TIN / Socket Contact Tin 16 AWG Crimp Stamped
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series VAL-U-LOK
Package Tape & Reel (TR)
Product Status Active
Type Stamped
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 16 AWG
Contact Finish Tin
Contact Finish Thickness 100.0µin (2.54µm)
Base Product Number 1586055
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363285-1586055-3
Ultra Librarian 3D Model Ultra Librarian 1586055-3 CAD Model

Description

The TE Connectivity AMP Connectors 1363285-1586055-3 is a rectangular connector contact from TE Connectivity AMP Connectors.

  • Series: VAL-U-LOK
  • Packaging: tape and reel
  • Contact Type: socket
  • Contact Termination: crimp
  • Wire Gauge: 16 AWG
  • Contact Finish: tin
  • Contact Finish Thickness: 100.0µin (2.54µm)
  • Status: active
  • REACH Regulations: no restrictions
  • ECCN: EAR99
