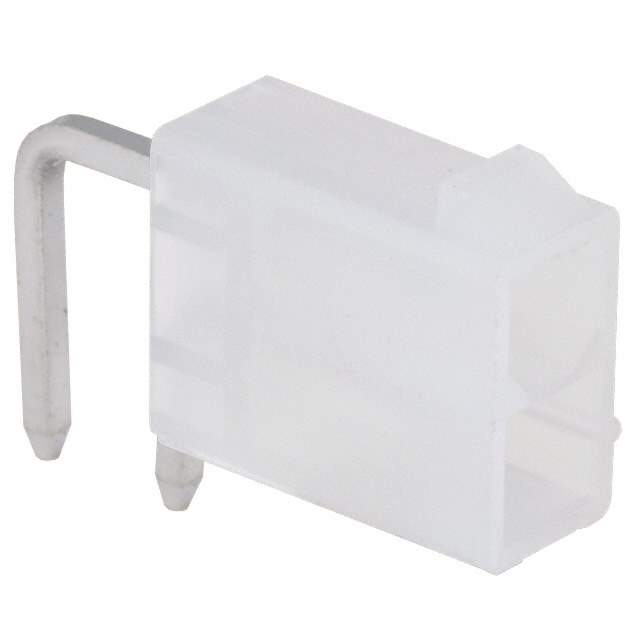

Part No 1586041-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 2POS / Connector Header Through Hole, Right Angle 2 position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Number of Positions 2
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.402" (10.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 80.0µin (2.03µm)
Contact Finish - Post Tin
Contact Material Brass Alloy
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-2
Insulation Color Natural
Current Rating (Amps) 9A
Voltage Rating 600VAC
Contact Finish Thickness - Post 80.0µin (2.03µm)
Applications General Purpose, Industrial, Lighting
Base Product Number 1586041
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 15860412,-1586041-2-LSI,A30614,-1586041-2-SI
Standard Package 690
Win Source Part Number 1334224-1586041-2
Ultra Librarian 3D Model Ultra Librarian 1586041-2 CAD Model

Description

The TE Connectivity AMP Connectors 1334224-1586041-2 is a two-row male pin header connector that is suitable for general purpose, industrial, and lighting applications.

  • Voltage Rating: 600VAC
  • Current Rating: 9A
  • Contact Material: brass alloy
  • Contact Finish: tin
  • Shrouded: 4 walls
  • Row Spacing: 0.165 inches (4.20mm)
  • Insulation Material: polyamide (PA) nylon
  • Flammability Rating: UL94 V-2
  • Termination: solder
  • Fastening Type: locking ramp
  • Insulation Height: 0.402 inches (10.20mm)
  • Contact Length: 0.142 inches (3.60mm)
  • Operating Temperature: -40°C to 105°C
